Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM-300910/00 BASE-T, ISOLATION XFMR |
100 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 150µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.472" L x 0.285" W (12.00mm x 7.25mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|
|
PM-853810/100 BASE-TX ISOLATION XFMR |
100 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-TX | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.961" L x 0.600" W (24.40mm x 15.24mm) | 0.406" (10.30mm) | 0°C ~ 70°C | - | - |
|
|
PM-8106QUAD PORT SMD, ISOLATION XFMR |
100 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Quad) | 1.2mH | - | 1:1.15 Transmitter, 1:1 Receiver | Surface Mount | 1.125" L x 0.480" W (28.58mm x 12.19mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
PM-8540S5KV ISOLATION XFMR |
100 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-TX | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.961" L x 0.600" W (24.40mm x 15.24mm) | 0.406" (10.30mm) | -40°C ~ 85°C | - | - |
|
ALT3232M-151-T001PULSE XFMR 1CT:1CT 150UH |
4,643 | 1.80 |
|
Datasheet |
ALT | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 150µH | - | 1CT:1CT | Surface Mount | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.114" (2.90mm) | -40°C ~ 85°C | - | - |
|
S558-5999-Z5-FMODULE XFRMR LAN 10/100B-TX SMD |
1,192 | 2.58 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.485" L x 0.285" W (12.32mm x 7.24mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|
PT61020ELPULSE XFMR 1CT:1 350UH |
3,034 | 2.73 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1 | Surface Mount | 0.694" L x 0.480" W (17.62mm x 12.20mm) | 0.236" (6.00mm) | -40°C ~ 85°C | - | - |
|
|
ALANL100X1-EF10JT10/100BASE-TX LAN XFMR |
2,594 | 3.66 |
|
Datasheet |
ALANL100X1-E | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.085" (2.15mm) | -40°C ~ 105°C | - | - |
|
H1102NLTXFRMR MAGNETIC 1PORT 1:1 10/100 |
2,866 | 5.31 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|

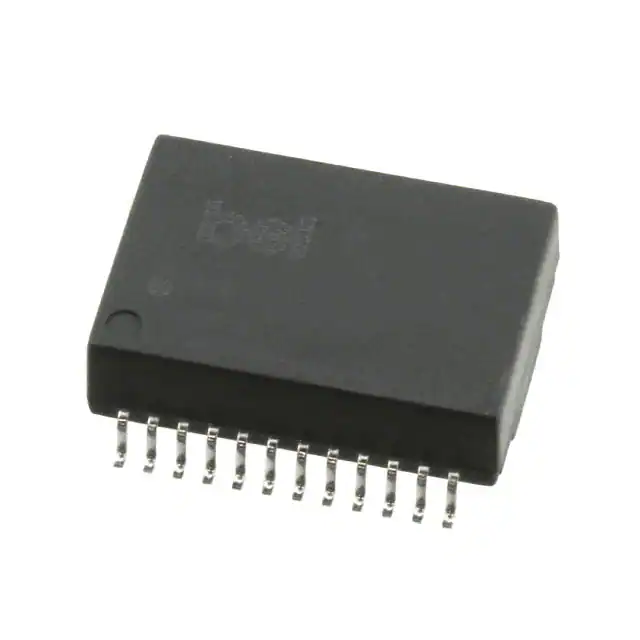

S558-5500-68XFRMR MODULE LAN 10/100BT SMD |
3,911 | 4.69 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T, Power over Ethernet (PoE) | 350µH | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
749010310PULSE XFMR 1:1 300UH |
1,552 | 5.40 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.500" L x 0.341" W (12.70mm x 8.66mm) | 0.167" (4.25mm) | -40°C ~ 85°C | - | - |
|
HX1260NLXFRMR MODULE 1PORT 1:1 10/100 |
2,159 | 5.49 |
|
Datasheet |
Star Magnetics™ | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
HX2326NLMODULE 10/100B-T POE SMD |
1,142 | 5.53 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
P0584NLPULSE XFMR 1:1:1 450UH |
2,235 | 5.57 |
|
Datasheet |
- | Tray | Active | - | 450µH | 95VµS | 1:1:1 | Through Hole | 0.810" L x 0.480" W (20.57mm x 12.19mm) | 0.750" (19.05mm) | -40°C ~ 125°C | - | - |
|
H5084NLMODULE MAGNETIC 1PORT 1000BASE-T |
1,630 | 5.65 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.600" L x 0.300" W (15.24mm x 7.62mm) | 0.163" (4.14mm) | 0°C ~ 70°C | - | - |
|
S558-5999-BQ-FMODULE TRANSFORMER |
2,746 | 5.86 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.285" (7.24mm) | - | - | - |
|
|
GST5009M LFMDL 1G SINGLE PORT N/A |
2,026 | 4.69 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 0.594" L x 0.280" W (15.10mm x 7.10mm) | 0.157" (4.00mm) | -40°C ~ 85°C | - | - |
|
H5007NLMODULE SINGLE GIGABIT LAN 24SOIC |
3,601 | 8.73 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.227" (5.76mm) | 0°C ~ 70°C | - | - |
|

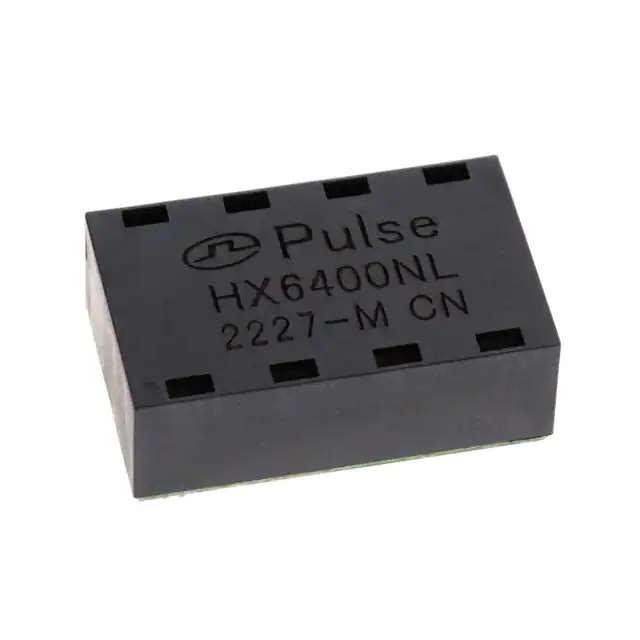

HX6400NLMODULE QUAD 1GPP 1:1 SMT TU |
4,894 | 31.11 |
|
Datasheet |
HX6400NL | Tray | Active | LAN 1000 Base-T | 150µH | - | 1:1 | Surface Mount | 1.120" L x 0.680" W (28.45mm x 17.27mm) | 0.440" (11.18mm) | -40°C ~ 85°C | - | - |
|
TP-104-PINTRANSFORMER,WIDE-BAND |
1,393 | 159.60 |
|
Datasheet |
- | Tray | Active | - | - | - | - | Surface Mount | 0.374" L x 0.374" W (9.50mm x 9.50mm) | 0.150" (3.80mm) | -55°C ~ 85°C | - | - |
