Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

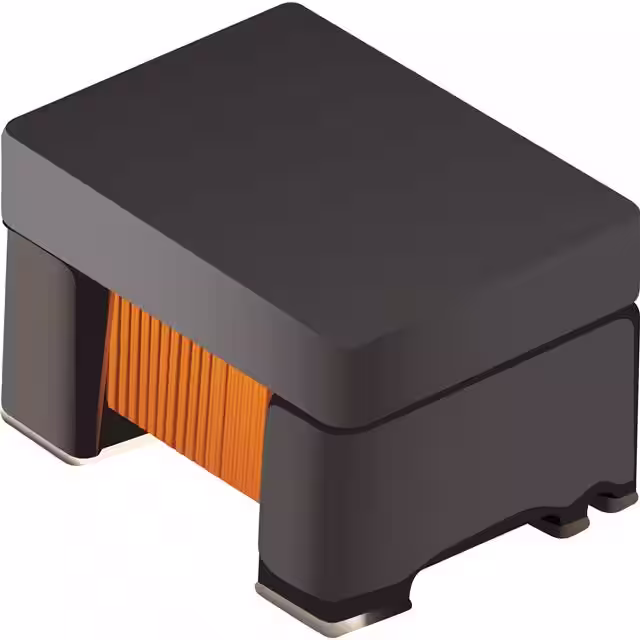

SM453229A-381N7YLAN XFMR,10/100/1000 BASE-T,IEEE |
3,282 | 0.91 |
|
Datasheet |
SM | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.185" L x 0.127" W (4.70mm x 3.22mm) | 0.114" (2.90mm) | -40°C ~ 85°C | Automotive | AEC-Q200 |
|
DA102MC-RDIGITAL AUDIO TX 1:1 3MH SMD |
3,232 | 1.06 |
|
Datasheet |
DA100 | Tape & Reel (TR) | Not For New Designs | - | 3.9mH | 20VµS | 1:1 | Surface Mount | 0.354" L x 0.375" W (9.00mm x 9.52mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
78604/9CTRANSFORMER 2:1 10MH 56VUS |
1,313 | 1.57 |
|
Datasheet |
786 | Tube | Active | General Purpose | 10mH | 56VµS | 2:1 | Through Hole | 0.354" L x 0.375" W (9.00mm x 9.52mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
DA101CDIGITAL AUDIO TX 1:1 1.5MH DIP |
3,869 | 1.57 |
|
Datasheet |
DA100 | Tube | Active | - | 2.06mH | 15VµS | 1:1 | Through Hole | 0.354" L x 0.375" W (9.00mm x 9.52mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|

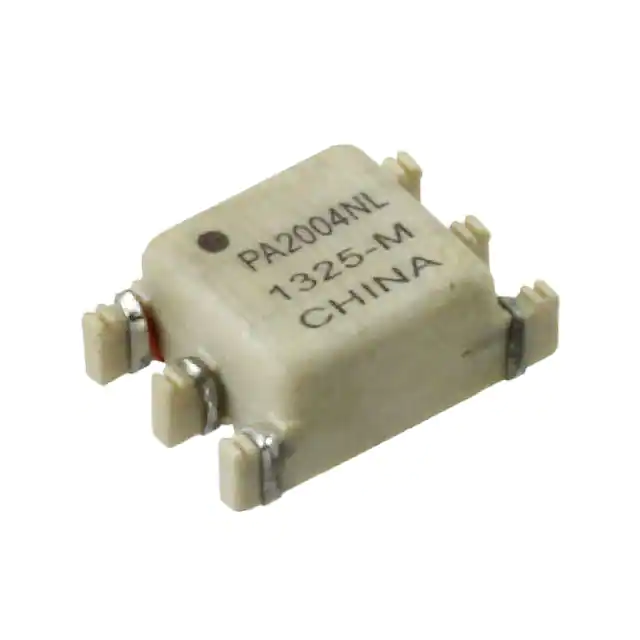

PA2004NLPULSE XFMR 1:1:1 437UH |
2,406 | 2.64 |
|
Datasheet |
- | Tube | Active | - | 437µH | 20VµS | 1:1:1 | Surface Mount | 0.340" L x 0.265" W (8.64mm x 6.73mm) | 0.140" (3.56mm) | -40°C ~ 130°C | - | - |
|
PA0297NLPULSE XFMR 2:1:1 1200UH |
3,424 | 2.82 |
|
Datasheet |
- | Tube | Active | - | 1200µH | 27.2VµS | 2:1:1 | Surface Mount | 0.354" L x 0.339" W (9.00mm x 8.60mm) | 0.299" (7.60mm) | -40°C ~ 130°C | - | - |
|
HM2108NLXFMR CMC MODULE AECQ BATT MNGT |
4,903 | 5.85 |
|
Datasheet |
- | Tube | Active | - | 135µH | - | - | Surface Mount | 0.335" L x 0.663" W (8.50mm x 16.84mm) | 0.226" (5.75mm) | - | - | - |
|
HX1339NLXFRMR MODULE 100B-TX 2 CH SMT |
1,243 | 9.32 |
|
Datasheet |
- | Tube | Active | General Purpose | 350µH | - | 1:1 | Surface Mount | - | 0.300" (7.62mm) | - | - | - |
|

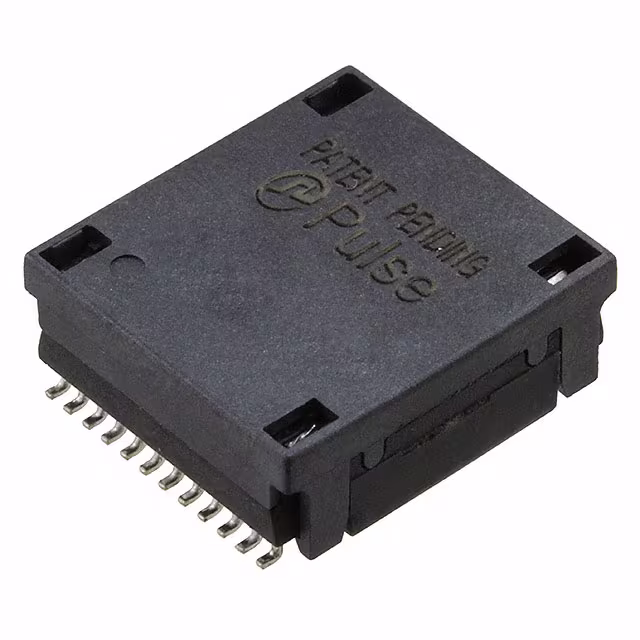

H7008FNLTRANSFORMER MODULE 10GBASE-T |
2,507 | 9.90 |
|
Datasheet |
- | Tube | Active | LAN 10G Base-T | 200µH | - | 1:1 | Surface Mount | 0.591" L x 0.539" W (15.00mm x 13.70mm) | 0.230" (5.85mm) | 0°C ~ 70°C | - | - |
|
IT258XFRMR PULSE 1:1 SGL 2.5MH 1A |
3,808 | 10.82 |
|
Datasheet |
IT | Tray | Active | Data/Voice Coupling | 2.5mH | - | 1:1 | Through Hole | 0.693" L x 0.657" W (17.60mm x 16.70mm) | 0.445" (11.30mm) | -25°C ~ 70°C | - | - |
|
78602/16JC-RPULSE XFMR 1:1:1 3.35MH |
2,516 | 2.79 |
|
Datasheet |
786J | Tape & Reel (TR) | Active | General Purpose | 3.35mH | 28VµS | 1:1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
78601/3MCPULSE XFMR 1:1 200UH |
2,960 | 1.57 |
|
Datasheet |
786 | Tube | Not For New Designs | General Purpose | 200µH | 6VµS | 1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78602/4CPULSE XFMR 1:1:1 67UH |
4,654 | 1.57 |
|
Datasheet |
786 | Tube | Active | General Purpose | 67µH | 4VµS | 1:1:1 | Through Hole | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78615/8CPULSE XFMR 1CT:1CT 1MH |
2,630 | 1.57 |
|
Datasheet |
786 | Tube | Active | General Purpose | 1mH | 15VµS | 1CT:1CT | Through Hole | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
DA102JCDIGITAL AUDIO TX 1:1 3MH DIP |
1,446 | 1.57 |
|
Datasheet |
DA100J | Box | Active | - | 3.9mH | 20VµS | 1:1 | Surface Mount | 0.354" L x 0.375" W (9.00mm x 9.52mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
DA103JCDIGITAL AUDIO TX 1:1 5MH DIP |
4,958 | 1.57 |
|
Datasheet |
DA100J | Box | Active | - | 7.75mH | 28VµS | 1:1 | Surface Mount | 0.354" L x 0.375" W (9.00mm x 9.52mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
78602/2CTRANSFORMER 1:1:1 500UH 10VUS |
4,160 | 1.57 |
|
Datasheet |
786 | Tube | Active | General Purpose | 500µH | 10VµS | 1:1:1 | Through Hole | 0.354" L x 0.375" W (9.00mm x 9.52mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78601/2JCTRANSFORMER 1:1 350UH 10VUS |
4,251 | 1.57 |
|
Datasheet |
786J | Tube | Active | General Purpose | 350µH | 10VµS | 1:1 | Surface Mount | 0.354" L x 0.375" W (9.00mm x 9.52mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78604/4JCXFRMR 2:1 4VUS SMD TOROID |
3,776 | 1.57 |
|
Datasheet |
786 | Tube | Active | General Purpose | 67µH | 4VµS | 2:1 | Surface Mount | 0.354" L x 0.375" W (9.00mm x 9.52mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
78615/16JCXFRMR 1CT:1CT 28VUS SMD TOROID |
1,126 | 1.57 |
|
Datasheet |
786 | Tube | Active | General Purpose | 4mH | 28VµS | 1CT:1CT | Surface Mount | 0.354" L x 0.375" W (9.00mm x 9.52mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
