Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DA102MCDIGITAL AUDIO TX 1:1 3MH SMD |
1,303 | 1.57 |
|
Datasheet |
DA100 | Box | Not For New Designs | - | 3.9mH | 20VµS | 1:1 | Surface Mount | 0.354" L x 0.375" W (9.00mm x 9.52mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
78601/3CPULSE XFMR 1:1 200UH |
2,138 | 1.57 |
|
Datasheet |
786 | Tube | Active | General Purpose | 200µH | 6VµS | 1:1 | Through Hole | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
78613/16JCPULSE XFMR 1CT:1 3.2MH |
1,782 | 1.57 |
|
Datasheet |
786J | Tube | Active | General Purpose | 3.2mH | 28VµS | 1CT:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
782482/33VCXFRMR CONV ADM2482 3.3V IN |
1,495 | 2.10 |
|
Datasheet |
782482 | Tube | Active | Isolation and Data Interface (Encapsulated) | 310µH | - | 1CT:1.33CT | Through Hole | 0.360" L x 0.385" W (9.14mm x 9.77mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|

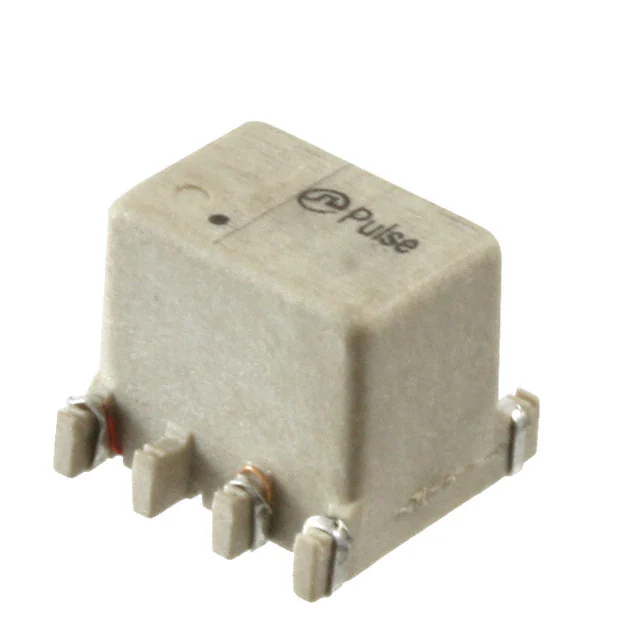

PA2002NLPULSE XFMR 1:1:1 1.8MH |
1,129 | 0.00 |
|
Datasheet |
- | Tube | Active | - | 1.8mH | 60VµS | 1:1:1 | Surface Mount | 0.355" L x 0.340" W (9.02mm x 8.64mm) | 0.300" (7.62mm) | -40°C ~ 130°C | - | - |
|

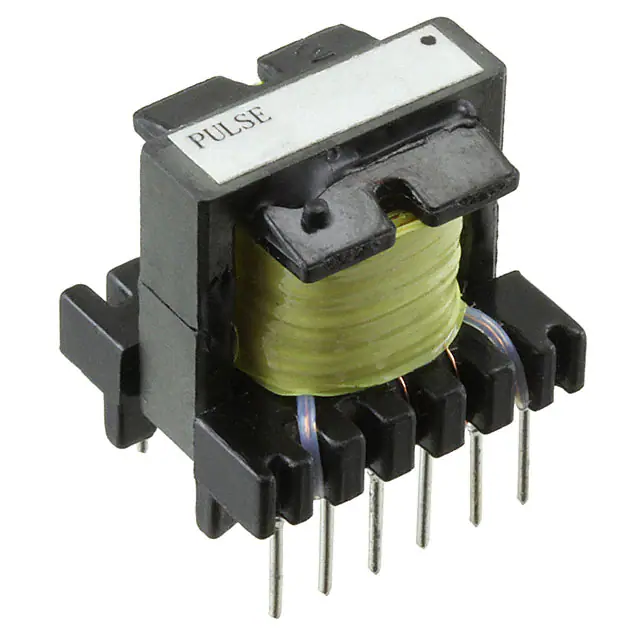

PA2517NLPULSE XFMR 1.2MH |
2,824 | 0.00 |
|
Datasheet |
- | Tray | Active | - | 1.2mH | - | - | Through Hole | 0.717" L x 0.630" W (18.20mm x 16.00mm) | 0.709" (18.00mm) | -40°C ~ 130°C | - | - |
|
ITNA-0249-D104ITNA PULSE TRANSFORMER THT 0.1A |
4,162 | 3.20 |
|
Datasheet |
IT | Bulk | Active | SCR and Triac Trigger (Encapsulated) | 3.5mH | 300VµS | 1:1 | Through Hole | 0.701" L x 0.717" W (17.80mm x 18.20mm) | 0.512" (13.00mm) | -25°C ~ 100°C | - | - |
|
ISRB-0249-D101ISRB PULSE TRANSFORMER SMD 0.1A |
1,475 | 4.47 |
|
Datasheet |
IS | Bulk | Active | SCR and Triac Trigger (Encapsulated) | 1.4mH | 250VµS | 2:1 | Surface Mount | 0.701" L x 0.717" W (17.80mm x 18.20mm) | 0.532" (13.50mm) | -25°C ~ 100°C | - | - |
|
ILR-11-0002ILR2 PULSE TRANSFORMER THT 1A |
3,427 | 4.62 |
|
Datasheet |
ILR | Bulk | Active | Isolation and Data Interface (Encapsulated) | 2.5mH | - | 2:1 | Through Hole | 0.689" L x 0.728" W (17.50mm x 18.50mm) | 0.453" (11.50mm) | -25°C ~ 70°C | - | - |
|
77208CPULSE XFMR 1:1:1 16.3MH |
2,532 | 6.95 |
|
Datasheet |
- | Tube | Active | SCR and Triac Trigger (Encapsulated) | 16.3mH | 482VµS | 1:1:1 | Through Hole | 1.000" L x 0.799" W (25.40mm x 20.30mm) | 0.484" (12.30mm) | 0°C ~ 70°C | - | - |
|
|
77202CPULSE XFMR 1:1:1 1MH |
4,424 | 6.95 |
|
Datasheet |
- | Tube | Active | SCR and Triac Trigger (Encapsulated) | 1mH | 120VµS | 1:1:1 | Through Hole | 1.000" L x 0.799" W (25.40mm x 20.30mm) | 0.484" (12.30mm) | 0°C ~ 70°C | - | - |
|
|
77205CPULSE XFMR 1:1:1 4MH |
4,632 | 6.95 |
|
Datasheet |
- | Tube | Active | SCR and Triac Trigger (Encapsulated) | 4mH | 240VµS | 1:1:1 | Through Hole | 1.000" L x 0.799" W (25.40mm x 20.30mm) | 0.484" (12.30mm) | 0°C ~ 70°C | - | - |
|

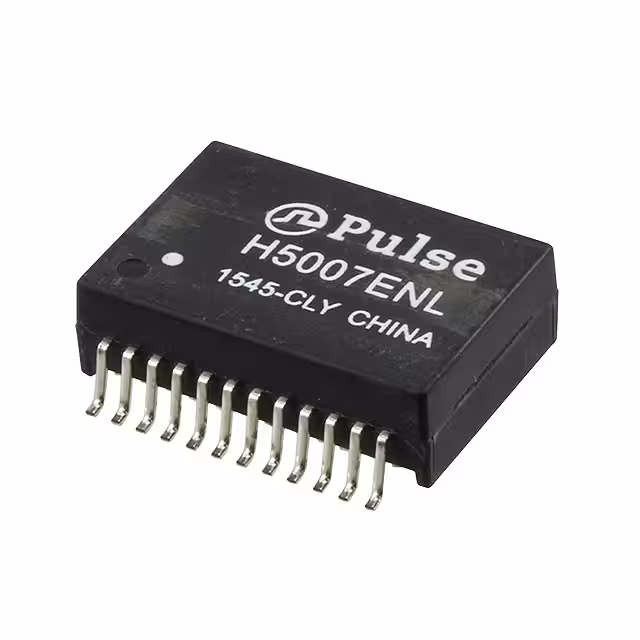

H5007ENLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
4,890 | 9.05 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.480" W (17.50mm x 12.20mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
H2006ANLMODULE MAGNETICS POE DUAL VOIP |
3,157 | 8.87 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.537" L x 0.470" W (13.64mm x 11.94mm) | 0.254" (6.45mm) | 0°C ~ 70°C | - | - |
|
ALAN-2301PULSE XFMR 1CT:1CT 350UH |
2,372 | 9.58 |
|
Datasheet |
ALAN-2301 | Strip | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.689" L x 0.559" W (17.50mm x 14.20mm) | 0.219" (5.55mm) | -40°C ~ 85°C | - | - |
|
X-1569XFMR GATE DRIVE 1500VDC ISO |
3,797 | 11.15 |
|
Datasheet |
- | Tube | Active | Gate Drive | 3.3mH | 45.1VµS | 1:1:1 | Surface Mount | 0.355" L x 0.340" W (9.01mm x 8.63mm) | 0.300" (7.62mm) | -40°C ~ 130°C | - | - |
|
HX6080NLPULSE XFMR 1 CT:1CT TX/RX 350UH |
3,505 | 16.09 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.285" (7.24mm) | -40°C ~ 85°C | - | - |
|

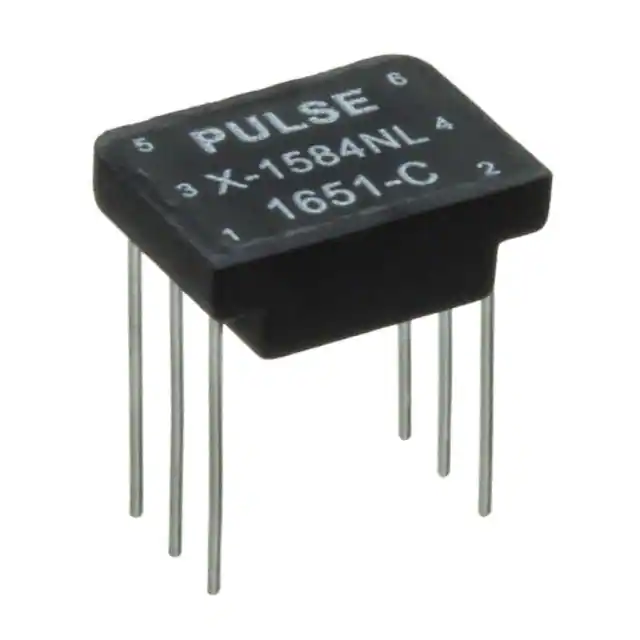

X-1584NLTRANSFORMER SINGLE 1553 |
1,555 | 30.41 |
|
Datasheet |
- | Tube | Active | Interface, MIL-STD-1553 | - | - | 1CT:1.79CT | Through Hole | 0.350" L x 0.500" W (8.89mm x 12.70mm) | 0.172" (4.37mm) | -55°C ~ 130°C | - | - |
|
78602/2MC-RPULSE XFMR 1:1:1 500UH |
4,104 | 1.16 |
|
Datasheet |
786 | Tape & Reel (TR) | Not For New Designs | General Purpose | 500µH | 10VµS | 1:1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78604/4MC-RPULSE XFMR 2:1 67UH |
2,855 | 1.16 |
|
Datasheet |
786 | Tape & Reel (TR) | Not For New Designs | General Purpose | 67µH | 4VµS | 2:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
