Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

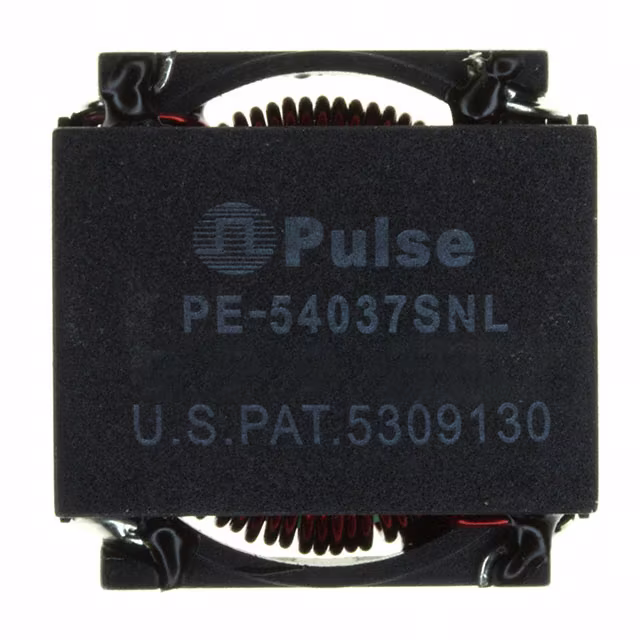

PE-54037SNLFIXED IND 114UH 2.22A 100MOHM SM |
699 | 4.84 |
|
Datasheet |
- | Nonstandard | Bulk | Active | Toroidal | - | 114 µH | ±20% | 2.22 A | - | Shielded | 100mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
|
PG1083.253NLTFIXED IND 24.5UH 11A 15 MOHM SMD |
597 | 2.53 |
|
Datasheet |
PG1083NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 24.5 µH | ±20% | 11 A | 14.5A | Unshielded | 15mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.854" L x 0.846" W (21.70mm x 21.50mm) | 0.492" (12.50mm) |
|
|
PG1083.103NLFIXED IND 10.5UH 17.5A 6MOHM SMD |
418 | 4.70 |
|
Datasheet |
PG1083NL | Nonstandard | Tray | Active | Wirewound | - | 10.5 µH | ±20% | 17.5 A | 22.5A | Unshielded | 6mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.854" L x 0.846" W (21.70mm x 21.50mm) | 0.492" (12.50mm) |
|
PA1494.362NLTFIXED IND 3.6UH 17A 1.8 MOHM SMD |
8,962 | 6.64 |
|
Datasheet |
PA1494NL | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 3.6 µH | ±15% | 17 A | 20A | Shielded | 1.8mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
IHLP6767GZER150M8AFIXED IND 15UH 12.5A 16.96 MOHM |
234 | 4.99 |
|
Datasheet |
IHLP-6767GZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 12.5 A | 13A | Shielded | 16.96mOhm Max | - | 8.55MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
FP3-4R7-RFIXED IND 4.7UH 3.23A 40MOHM SMD |
3,316 | 4.59 |
|
Datasheet |
FLAT-PAC 3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±15% | 3.23 A | 4.2A | Unshielded | 40mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.264" W (7.25mm x 6.70mm) | 0.118" (3.00mm) |
|
4922R-25LFIXED IND 100UH 760MA 672MOHM SM |
7,634 | 4.35 |
|
Datasheet |
4922R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±15% | 760 mA | 760mA | Unshielded | 672mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|
|
4922R-09LFIXED IND 4.7UH 2.9A 47 MOHM SMD |
6,223 | 4.35 |
|
Datasheet |
4922R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±15% | 2.9 A | 2.9A | Unshielded | 47mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|
|
4922R-22LFIXED IND 56UH 1A 397 MOHM SMD |
2,288 | 4.35 |
|
Datasheet |
4922R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±15% | 1 A | 1A | Unshielded | 397mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|
SPM12565VT-150M-DFIXED IND 15UH 8.5A 0.0209OHM SM |
1,523 | 5.04 |
|
Datasheet |
SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 15 µH | ±20% | 8.5 A | 10.6A | Shielded | 20.9mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 1256 | 0.512" L x 0.492" W (13.00mm x 12.50mm) | 0.256" (6.50mm) |
|
SPM12565VT-4R7M-DFIXED IND 4.7UH 14A 0.0071OHM SM |
126 | 5.09 |
|
Datasheet |
SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 14 A | 22.2A | Shielded | 7.1mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 1256 | 0.512" L x 0.492" W (13.00mm x 12.50mm) | 0.256" (6.50mm) |
|

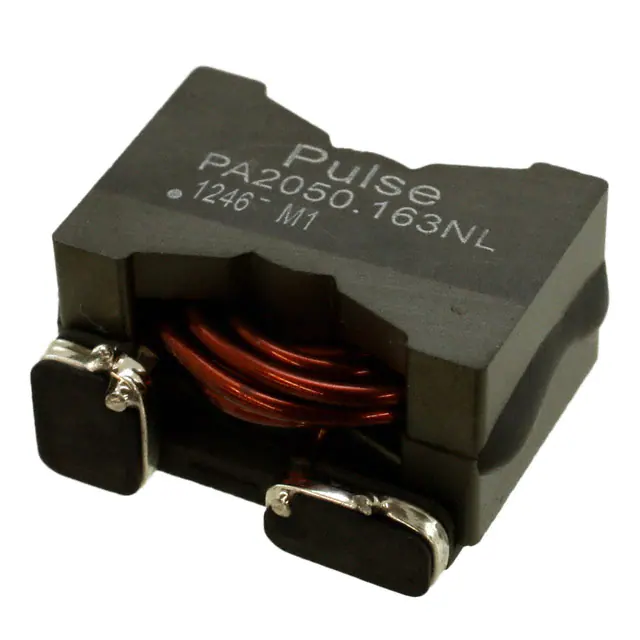

PA2050.163NLFIXED IND 16UH 9.9A 9.1 MOHM SMD |
485 | 5.23 |
|
Datasheet |
PA2050NL | Nonstandard | Tray | Active | Wirewound | - | 16 µH | ±10% | 9.9 A | 12A | Shielded | 9.1mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
|
|
PA2050.193NLFIXED IND 19.4UH 8.5A 12.6 MOHM |
357 | 5.23 |
|
Datasheet |
PA2050NL | Nonstandard | Tray | Active | Wirewound | - | 19.4 µH | ±10% | 8.5 A | 22A | Shielded | 12.6mOhm | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.878" L x 0.750" W (22.30mm x 19.05mm) | 0.480" (12.20mm) |
.jpg)
|

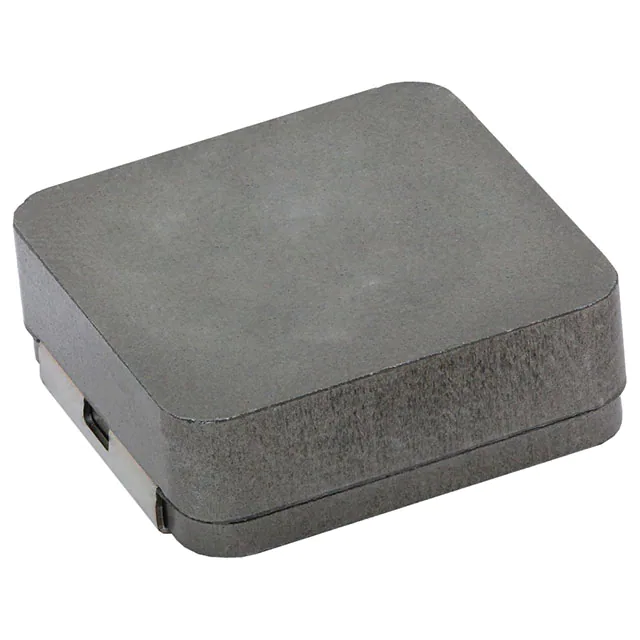

IHLP7575GZER1R0M51FIXED IND 1UH 55A 0.00134OHM SMD |
118 | 6.03 |
|
Datasheet |
IHLP-7575GZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 55 A | 81A | Shielded | 1.34mOhm Max | - | 31.5MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.752" L x 0.750" W (19.10mm x 19.05mm) | 0.276" (7.00mm) |
|

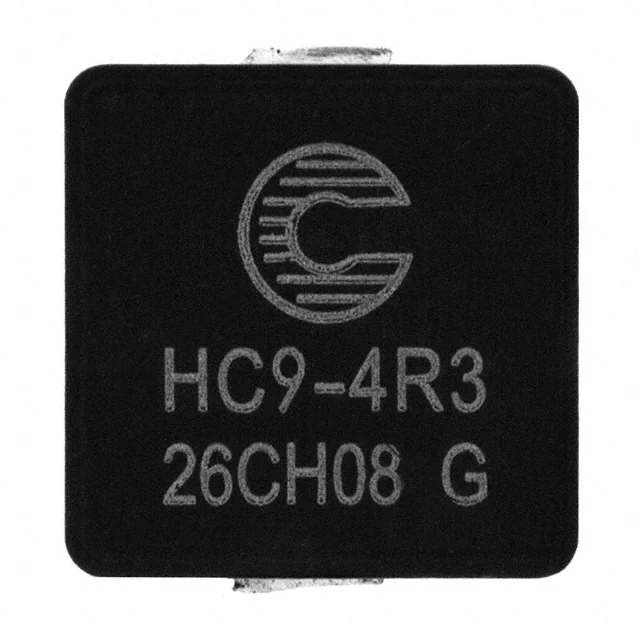

HC9-4R3-RFIXED IND 4.3UH 13A 5.9 MOHM SMD |
512 | 4.12 |
|
Datasheet |
HC9 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.3 µH | ±15% | 13 A | 19.1A | Unshielded | 5.9mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.555" L x 0.516" W (14.10mm x 13.10mm) | 0.295" (7.50mm) |
|
S1812R-334KFIXED IND 330UH 129MA 12 OHM SMD |
9,708 | 4.59 |
|
Datasheet |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 330 µH | ±10% | 129 mA | - | Shielded | 12Ohm Max | 40 @ 790kHz | 3.7MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
S1812R-224KFIXED IND 220UH 149MA 9 OHM SMD |
9,561 | 4.59 |
|
Datasheet |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 220 µH | ±10% | 149 mA | - | Shielded | 9Ohm Max | 40 @ 790kHz | 4.2MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
S1812R-473KFIXED IND 47UH 242MA 3.4 OHM SMD |
7,013 | 4.59 |
|
Datasheet |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±10% | 242 mA | - | Shielded | 3.4Ohm Max | 50 @ 2.5MHz | 9MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
S1812R-392KFIXED IND 3.9UH 487MA 840MOHM SM |
518 | 4.59 |
|
Datasheet |
S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 3.9 µH | ±10% | 487 mA | - | Shielded | 840mOhm Max | 40 @ 7.9MHz | 56MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
SPD74R-103MFIXED IND 10UH 3.2A 49 MOHM SMD |
6,000 | 4.61 |
|
Datasheet |
SPD74R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.2 A | 3.2A | Shielded | 49mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.185" (4.70mm) |
