Magnetic, Reed Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Operate Range | Release Range | Current - Switching | Voltage - Switching AC | Voltage - Switching DC | Power - Rated | Operate Time | Release Time | Mounting Type | Termination Style | Length - Overall | Size - Body | Height Above Board | Operating Temperature | Capacitance | Current - Carry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

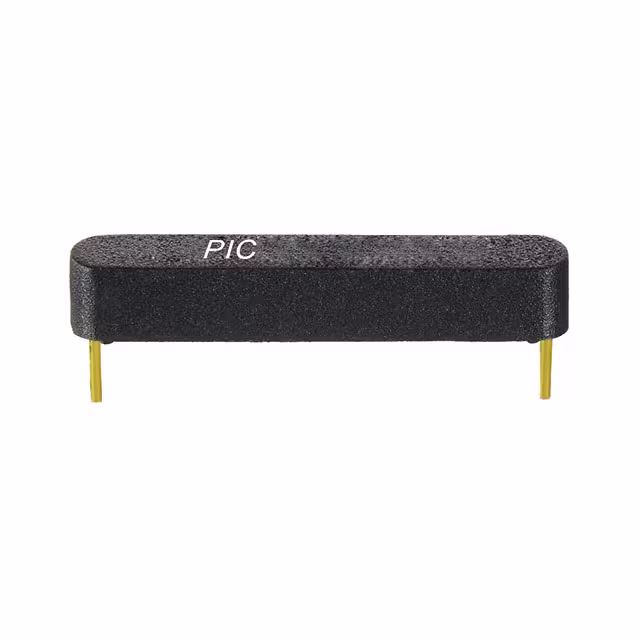

MS-107-3-2SWITCH REED SPST-NO 700MA 130V |
500 | 1.46 |
|
Datasheet |
- | Bulk | Active | Molded Body Reed | SPST-NO | 15 ~ 20AT | 4AT | 700mA (AC/DC) | 130 V | 180 V | 10W | 0.5 ms | 0.3 ms | Through Hole | PC Pin | 0.776" (19.70mm) | 0.776" L x 0.110" W x 0.126" H (19.70mm x 2.80mm x 3.20mm) | 0.126" (3.20mm) | -20°C ~ 85°C | - | 1A (AC/DC) |
|
|
MS-107-3-3SWITCH REED SPST-NO 700MA 130V |
485 | 1.46 |
|
Datasheet |
- | Bulk | Active | Molded Body Reed | SPST-NO | 20 ~ 25AT | 4AT | 700mA (AC/DC) | 130 V | 180 V | 10W | 0.5 ms | 0.3 ms | Through Hole | PC Pin | 0.776" (19.70mm) | 0.776" L x 0.110" W x 0.126" H (19.70mm x 2.80mm x 3.20mm) | 0.126" (3.20mm) | -20°C ~ 85°C | - | 1A (AC/DC) |
|
|
MS-107-3-1SWITCH REED SPST-NO 700MA 130V |
416 | 1.46 |
|
Datasheet |
- | Bulk | Active | Molded Body Reed | SPST-NO | 10 ~ 15AT | 4AT | 700mA (AC/DC) | 130 V | 180 V | 10W | 0.5 ms | 0.3 ms | Through Hole | PC Pin | 0.776" (19.70mm) | 0.776" L x 0.110" W x 0.126" H (19.70mm x 2.80mm x 3.20mm) | 0.126" (3.20mm) | -20°C ~ 85°C | - | 1A (AC/DC) |
|
PMC-1001TH1520SWITCH REED SPST-NO 700MA 130V |
5,220 | 1.53 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 15 ~ 20AT | 4AT | 700mA (AC/DC) | 130 V | 180 V | 10W | 0.5 ms | 0.3 ms | Surface Mount | Axial | 0.640" (16.26mm) | 0.492" L x 0.114" W x 0.110" H (12.50mm x 2.90mm x 2.80mm) | - | -40°C ~ 125°C | - | 1A (AC/DC) |
|
PMC-2021T3035SWITCH REED SPST-NO 1.5A 250V |
1,437 | 1.88 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 30 ~ 35AT | 5AT | 1.5A (AC/DC) | 250 V | 200 V | 50W | 1 ms | 0.4 ms | Surface Mount | Axial | 1.126" (28.60mm) | 0.787" L x 0.100" W x 0.118" H (20.00mm x 2.54mm x 3.00mm) | - | -60°C ~ 125°C | - | 2A (AC/DC) |
|
59165-1-S-00-CSWITCH REED SPST-NO 350MA 140V |
1,640 | 1.79 |
|
Datasheet |
59165 | Bulk | Active | Molded Body Reed | SPST-NO | 10 ~ 15AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 1 ms | 1 ms | Surface Mount | Gull Wing | 0.795" (20.19mm) | 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm) | 0.099" (2.52mm) | -40°C ~ 105°C | 0.3 pF | 800mA (DC) |
|
MS-105-3-1SWITCH REED SPST-NO 500MA 120V |
265 | 2.05 |
|
Datasheet |
- | Bulk | Active | Molded Body Reed | SPST-NO | 10 ~ 15AT | 4AT | 500mA (AC/DC) | 120 V | 150 V | 10W | 0.3 ms | 0.1 ms | Through Hole | PC Pin | 0.567" (14.40mm) | 0.567" L x 0.110" W x 0.126" H (14.40mm x 2.80mm x 3.20mm) | 0.126" (3.20mm) | -20°C ~ 85°C | - | 700mA (AC/DC) |
|

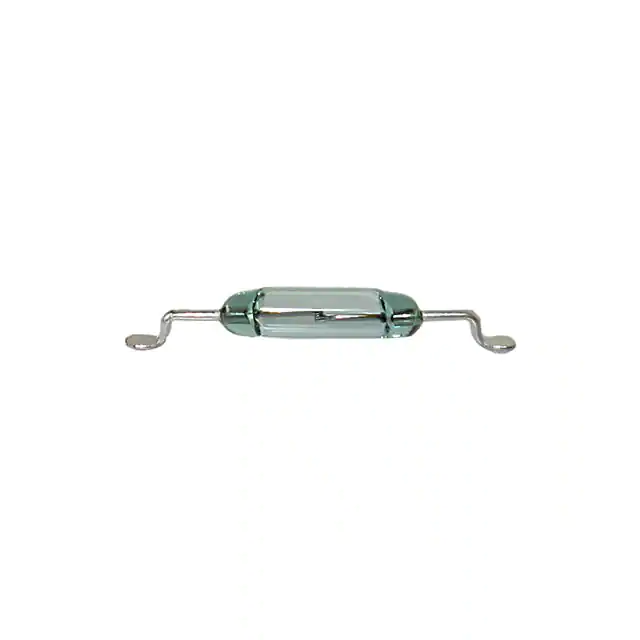

PMC-0701F1520SWITCH REED SPST-NO 500MA 120V |
2,500 | 1.95 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | 4AT | 500mA (AC/DC) | 120 V | 150 V | 10W | 0.3 ms | 0.1 ms | Surface Mount | Gull Wing | 0.512" (13.00mm) | 0.276" L x 0.059" W x 0.079" H (7.00mm x 1.50mm x 2.00mm) | 0.079" (2.00mm) | -40°C ~ 125°C | - | 700mA (AC/DC) |
|
MS-108-5-2SWITCH REED SPST-NO 300MA 260V |
170 | 2.06 |
|
Datasheet |
- | Bulk | Active | Molded Body Reed | SPST-NO | 15 ~ 20AT | 4AT | 300mA (AC/DC) | 260 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | PC Pin | 0.878" (22.30mm) | 0.878" L x 0.130" W x 0.165" H (22.30mm x 3.30mm x 4.20mm) | 0.165" (4.20mm) | -20°C ~ 85°C | - | 1.4A (AC/DC) |
|
59170-1-T-00-CSWITCH REED SPST-NO 350MA 140V |
1,464 | 2.09 |
|
Datasheet |
59170 | Box | Active | Molded Body Reed | SPST-NO | 15 ~ 20AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 1 ms | 0.5 ms | Surface Mount | Gull Wing | 0.640" (16.26mm) | 0.450" L x 0.090" W x 0.090" H (11.43mm x 2.29mm x 2.29mm) | 0.095" (2.41mm) | -40°C ~ 125°C | 0.3 pF | 800mA (DC) |
|
|
MS-108-5-3SWITCH REED SPST-NO 300MA 260V |
170 | 2.06 |
|
Datasheet |
- | Bulk | Active | Molded Body Reed | SPST-NO | 20 ~ 25AT | 4AT | 300mA (AC/DC) | 260 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | PC Pin | 0.878" (22.30mm) | 0.878" L x 0.130" W x 0.165" H (22.30mm x 3.30mm x 4.20mm) | 0.165" (4.20mm) | -20°C ~ 85°C | - | 1.4A (AC/DC) |
|
MRPR-20-22-38SWITCH REED SPST-NO 1.1A 265V |
890 | 3.39 |
|
Datasheet |
MRPR-20 | Bulk | Active | Glass Body Reed | SPST-NO | 22 ~ 38AT | - | 1.1A (AC), 1.5A (DC) | 265 V | 250 V | 50W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.112" Dia x 0.800" L (2.84mm x 20.32mm) | - | -20°C ~ 125°C | 0.2 pF | 3A (DC) |
|

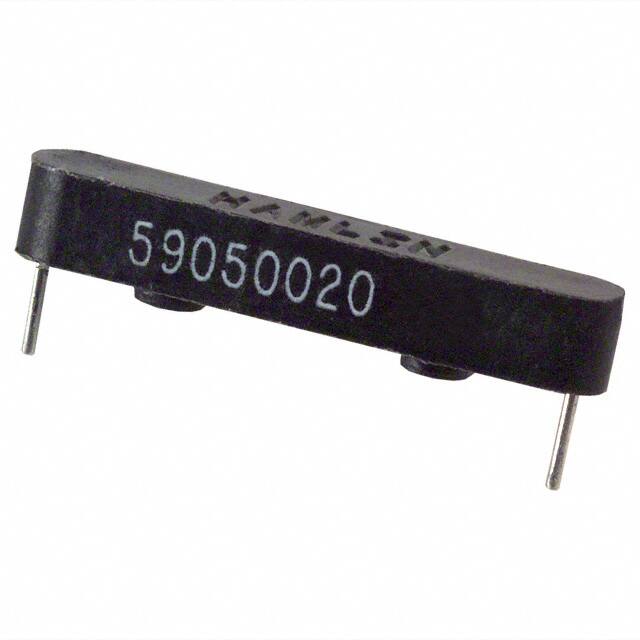

59050-020SWITCH REED SPST-NO 300MA 265V |
194 | 2.86 |
|
Datasheet |
59050 | Bulk | Active | Molded Body Reed | SPST-NO | 17 ~ 23AT | - | 300mA (AC), 400mA (DC) | 265 V | 300 V | 10W | 1 ms | 1 ms | Through Hole | PC Pin | 0.900" (22.86mm) | 0.900" L x 0.170" W x 0.180" H (22.86mm x 4.32mm x 4.57mm) | 0.180" (4.57mm) | -20°C ~ 105°C | 0.2 pF | 1.5A (DC) |
|
MVSR-20-32-38SWITCH REED SPST-NO 350MA 265V |
1,266 | 4.30 |
|
Datasheet |
MVSR-20 | Box | Active | Glass Body Reed | SPST-NO | 32 ~ 38AT | - | 350mA (AC), 500mA (DC) | 265 V | 1000 V | 10W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.235" (56.77mm) | 0.105" Dia x 0.775" L (2.66mm x 19.69mm) | - | -75°C ~ 125°C | 0.2 pF | 1.3A (DC) |
|
GC3436 25/30SWITCH REED SPDT 1A 150V |
348 | 0.00 |
|
Datasheet |
GC | Box | Active | Glass Body Reed | SPDT | 25 ~ 30AT | 5AT | 1A (AC/DC) | 150 V | 150 V | 20VA | 2 ms | 2 ms | Through Hole | Axial | 2.165" (55.00mm) | 0.090" Dia x 0.551" L (2.29mm x 14.00mm) | - | -40°C ~ 125°C | 0.8 pF | 2A |
|
|
GC3436 15/20SWITCH REED SPDT 1A 150V |
135 | 0.00 |
|
Datasheet |
GC | Box | Active | Glass Body Reed | SPDT | 15 ~ 20AT | 5AT | 1A (AC/DC) | 150 V | 150 V | 20VA | 2 ms | 2 ms | Through Hole | Axial | 2.165" (55.00mm) | 0.090" Dia x 0.551" L (2.29mm x 14.00mm) | - | -40°C ~ 125°C | 0.8 pF | 2A |
|
MDRR-DT-20-30-USWITCH REED SPDT 180MA 120V |
838 | 5.08 |
|
Datasheet |
MDRR-DT | Box | Active | Glass Body Reed | SPDT | 20 ~ 30AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Through Hole | Axial | 2.066" (52.48mm) | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | - | -40°C ~ 125°C | 1 pF | 1.5A (DC) |
|
|
MDRR-DT-20-25-USWITCH REED SPDT 180MA 120V |
1,000 | 4.99 |
|
Datasheet |
MDRR-DT | Box | Active | Glass Body Reed | SPDT | 20 ~ 25AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Through Hole | Axial | 2.066" (52.48mm) | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | - | -40°C ~ 125°C | 1 pF | 1.5A (DC) |
|
MDRR-DT-30-35-FSWITCH REED SPDT 180MA 120V |
1,000 | 4.99 |
|
Datasheet |
MDRR-DT | Box | Active | Glass Body Reed | SPDT | 30 ~ 35AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Through Hole | Axial | 2.034" (51.66mm) | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | - | -40°C ~ 125°C | 1 pF | 1.5A (DC) |
|
|
MDRR-DT-10-15-USWITCH REED SPDT 180MA 120V |
995 | 4.99 |
|
Datasheet |
MDRR-DT | Box | Active | Glass Body Reed | SPDT | 10 ~ 15AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Through Hole | Axial | 2.066" (52.48mm) | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | - | -40°C ~ 125°C | 1 pF | 1.5A (DC) |
