Magnetic, Reed Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Operate Range | Release Range | Current - Switching | Voltage - Switching AC | Voltage - Switching DC | Power - Rated | Operate Time | Release Time | Mounting Type | Termination Style | Length - Overall | Size - Body | Height Above Board | Operating Temperature | Capacitance | Current - Carry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MDSM-DTB-20-25SWITCH REED SPDT 180MA 120V |
980 | 5.10 |
|
Datasheet |
MDSM-DT | Box | Active | Glass Body Reed | SPDT | 20 ~ 25AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Surface Mount | Gull Wing | 1.000" (25.40mm) | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | 0.101" (2.56mm) | -40°C ~ 125°C | 1 pF | 1.5A (DC) |
|
GC3396 20/25SWITCH REED SPDT 200MA 100V |
191 | 0.00 |
|
Datasheet |
GC | Box | Active | Glass Body Reed | SPDT | 20 ~ 25AT | 5AT | 200mA (AC/DC) | 100 V | 100 V | 3VA | 2.5 ms | 0.02 ms | Through Hole | Axial | 2.000" (50.80mm) | 0.086" Dia x 0.377" L (2.18mm x 9.58mm) | - | -40°C ~ 130°C | 0.8 pF | 0.5A |
|
|
GC3396 15/20SWITCH REED SPDT 200MA 100V |
119 | 0.00 |
|
Datasheet |
GC | Box | Active | Glass Body Reed | SPDT | 15 ~ 20AT | 5AT | 200mA (AC/DC) | 100 V | 100 V | 3VA | 2.5 ms | 0.02 ms | Through Hole | Axial | 2.000" (50.80mm) | 0.086" Dia x 0.377" L (2.18mm x 9.58mm) | - | -40°C ~ 130°C | 0.8 pF | 0.5A |
|

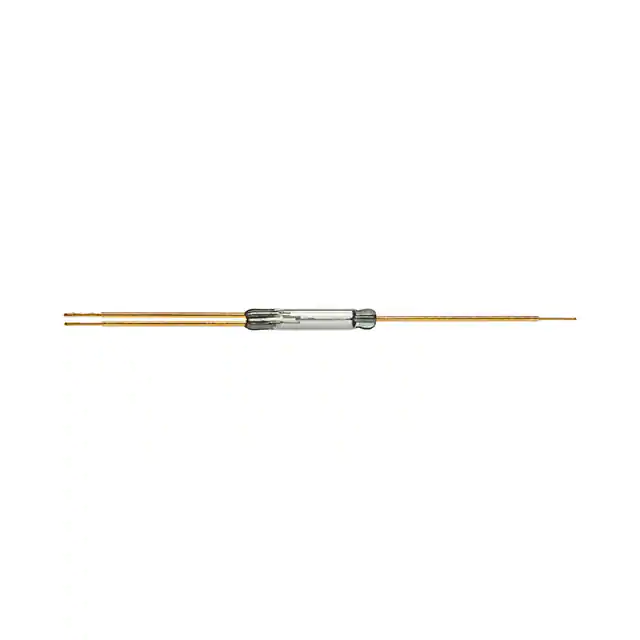

PMC-08221520SWITCH REED SPDT 200MA 50V |
130 | 13.04 |
|
Datasheet |
- | Bulk | Active | Glass Body Reed | SPDT | 15 ~ 20AT | 5AT | 200mA (AC/DC) | 50 V | 50 V | 3W | 2.5 ms | 2.5 ms | Surface Mount | Axial | 2.008" (51.00mm) | 0.087" Dia x 0.378" L (2.20mm x 9.60mm) | - | -40°C ~ 130°C | 1.5 pF | 500mA (AC/DC) |
|
|
ORD 611/10-15 ATSWITCH REED SPST-NO 500MA 150V |
5,000 | 0.00 |
|
Datasheet |
ORD | Bulk | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 500mA (AC/DC) | 150 V | 200 V | - | 0.4 ms | 0.3 ms | Through Hole | Axial | 1.732" (44.00mm) | 0.087" Dia x 0.551" L (2.20mm x 14.00mm) | 0.087" (2.20mm) | -40°C ~ 125°C | 0.5 pF | 1A (AC/DC) |
|
|
ORD 611/15-20 ATSWITCH REED SPST-NO 500MA 150V |
4,990 | 0.00 |
|
Datasheet |
ORD | Bulk | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | - | 500mA (AC/DC) | 150 V | 200 V | - | 0.4 ms | 0.3 ms | Through Hole | Axial | 1.732" (44.00mm) | 0.087" Dia x 0.551" L (2.20mm x 14.00mm) | 0.087" (2.20mm) | -40°C ~ 125°C | 0.5 pF | 1A (AC/DC) |
|
|
MK33-66-BREED SENSOR 1 FORM A SPST-NO SM |
4,683 | 0.00 |
|
Datasheet |
MK33 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 500mA (AC/DC) | 200 V | 200 V | 10W | - | 0.05 ms | Surface Mount | Axial | 0.609" (15.48mm) | 0.083" Dia x 0.472" L (2.10mm x 12.00mm) | 0.083" (2.10mm) | -40°C ~ 130°C | 0.3 pF | 1A (AC/DC) |
|

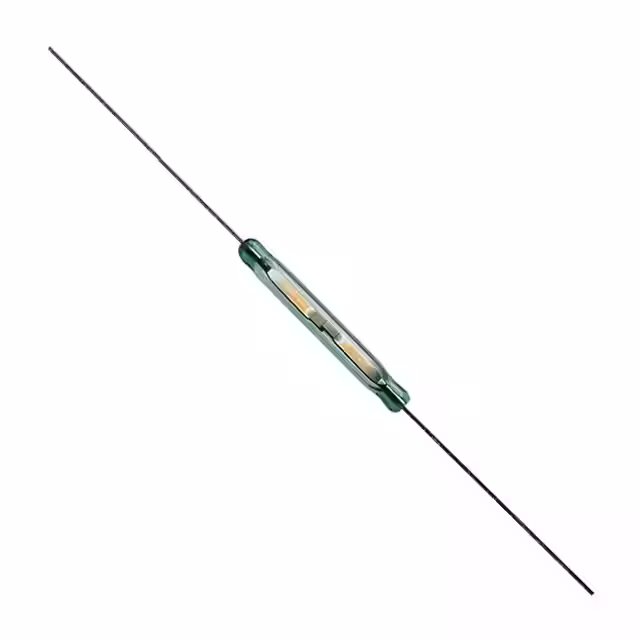

ORD 9215/10-15 ATSWITCH REED SPST-NO 500MA 100V |
1,983 | 0.58 |
|
Datasheet |
ORD | Bulk | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 500mA (AC/DC) | 100 V | 100 V | 10W | 0.4 ms | 0.05 ms | Through Hole | Axial | 1.736" (44.10mm) | 0.110" Dia x 0.669" L (2.80mm x 17.00mm) | - | - | 0.3 pF | 1A (AC/DC) |
|

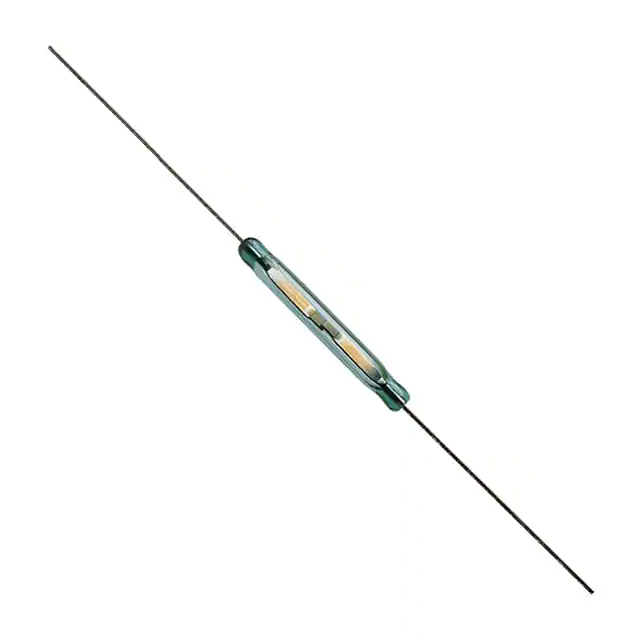

ORD 9215/15-20 ATSWITCH REED SPST-NO 500MA 100V |
1,916 | 0.58 |
|
Datasheet |
ORD | Bulk | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | - | 500mA (AC/DC) | 100 V | 100 V | 10W | 0.4 ms | 0.05 ms | Through Hole | Axial | 1.736" (44.10mm) | 0.110" Dia x 0.669" L (2.80mm x 17.00mm) | - | - | 0.3 pF | 1A (AC/DC) |
|

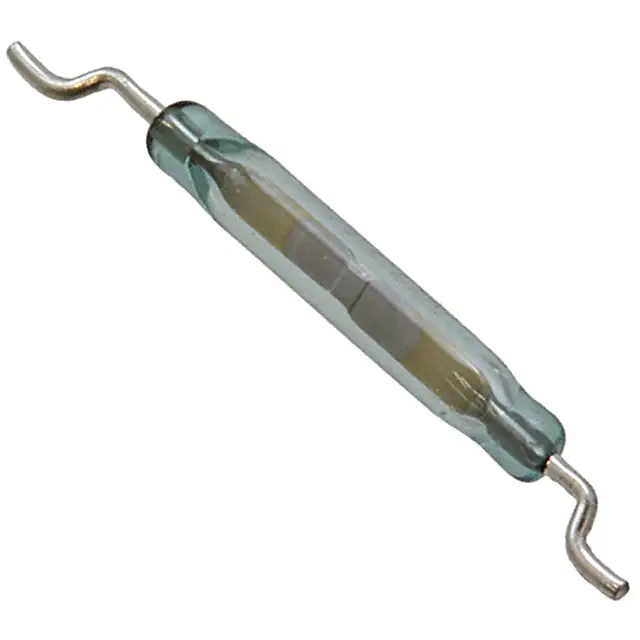

MK23-46-B-4SWITCH REED SPST-NO 500MA 200V |
2,488 | 0.64 |
|
Datasheet |
MK23 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 500mA (AC/DC) | 200 V | 200 V | 10W | 0.7 ms | 0.05 ms | Surface Mount | Gull Wing | 0.720" (18.30mm) | 0.079" Dia x 0.472" L (2.00mm x 12.00mm) | 0.098" (2.50mm) | -40°C ~ 130°C | 0.3 pF | 1A (AC/DC) |
|
MDCG-4-7-13SWITCH REED SPST-NO 350MA 140V |
761 | 1.38 |
|
Datasheet |
MDCG-4 | Bulk | Active | Glass Body Reed | SPST-NO | 7 ~ 13AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|

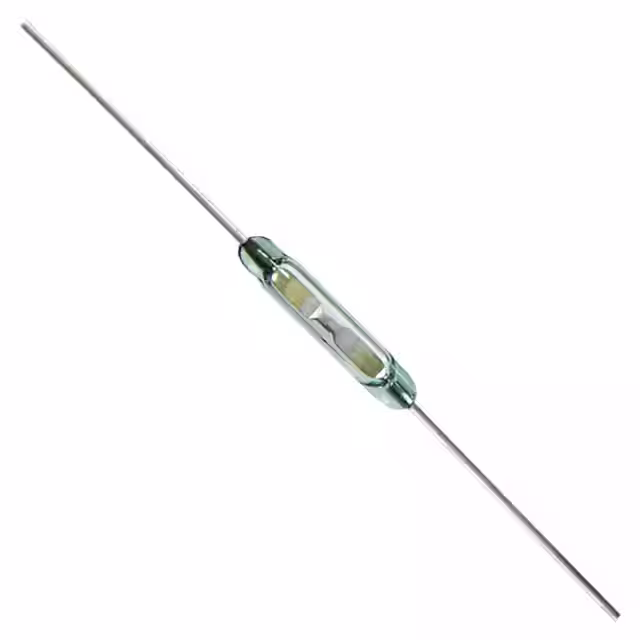

KSK-1A87-2030SWITCH REED SPST-NO 400MA 200V |
986 | 0.78 |
|
Datasheet |
KSK | Bulk | Active | Glass Body Reed | SPST-NO | 20 ~ 30AT | - | 400mA (AC/DC) | 200 V | 200 V | 10W | 0.6 ms | 0.1 ms | Through Hole | Axial | 1.406" (35.70mm) | 0.079" Dia x 0.394" L (2.00mm x 10.00mm) | - | -40°C ~ 130°C | 0.2 pF | 500mA (AC/DC) |
|
KSK-1A35-1015SWITCH REED SPST-NO 1A 200V |
113 | 0.60 |
|
Datasheet |
KSK | Bulk | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 1A (AC/DC) | 200 V | 200 V | 20W | 0.5 ms | 0.1 ms | Surface Mount | Axial, Flat | 1.358" (34.50mm) | 0.413" L x 0.087" W x 0.077" H (10.50mm x 2.20mm x 1.95mm) | - | -40°C ~ 130°C | 0.3 pF | 1.25A (AC/DC) |
|
MK23-66-B-4SWITCH REED SPST-NO 500MA 200V |
3,000 | 0.72 |
|
Datasheet |
MK23 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 500mA (AC/DC) | 200 V | 200 V | 10W | 0.7 ms | 0.05 ms | Surface Mount | Gull Wing | 0.799" (20.30mm) | 0.087" Dia x 0.551" L (2.20mm x 14.00mm) | 0.106" (2.70mm) | -40°C ~ 130°C | 0.3 pF | 1A (AC/DC) |
|
|
KSK-1A66-2030SWITCH REED SPST-NO 500MA 180V |
1,080 | 0.68 |
|
Datasheet |
KSK | Bulk | Active | Glass Body Reed | SPST-NO | 20 ~ 30AT | - | 500mA (AC/DC) | 180 V | 180 V | 10W | 0.5 ms | 0.1 ms | Through Hole | Axial | 1.744" (44.30mm) | 0.087" Dia x 0.551" L (2.20mm x 14.00mm) | - | -40°C ~ 130°C | 0.2 pF | 1.25A (AC/DC) |
|
MK23-35-B-2SWITCH REED SPST-NO 1A 200V |
2,408 | 0.73 |
|
Datasheet |
MK23 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 1A (AC/DC) | 200 V | 200 V | 15W | 0.5 ms | 0.1 ms | Surface Mount | Gull Wing | 0.620" (15.75mm) | 0.087" Dia x 0.413" L (2.20mm x 10.50mm) | 0.077" (1.95mm) | -40°C ~ 130°C | 0.3 pF | 1.25A (AC/DC) |
|
MDSR-7-8-10SWITCH REED SPST-NO 350MA 140V |
898 | 1.57 |
|
Datasheet |
MDSR-7 | Box | Active | Glass Body Reed | SPST-NO | 8 ~ 10AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.071" Dia x 0.500" L (1.80mm x 12.70mm) | - | -40°C ~ 125°C | 0.3 pF | 800mA (DC) |
|

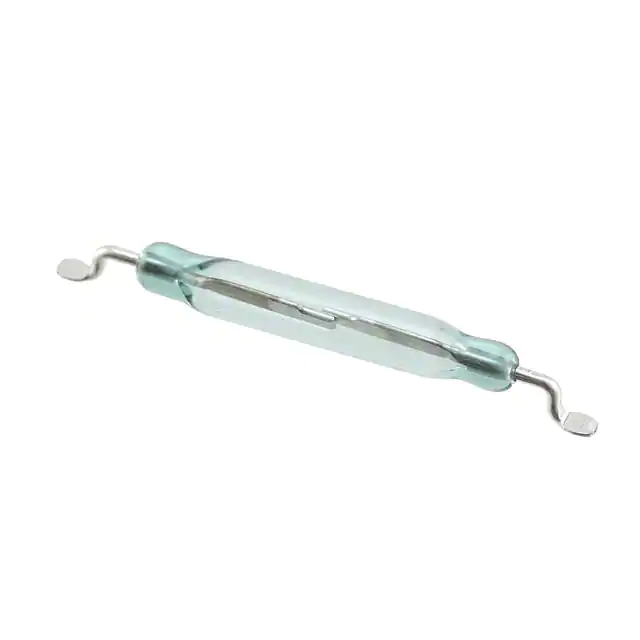

MK23-66-C-2SWITCH REED SPST-NO 500MA 200V |
1,237 | 0.64 |
|
Datasheet |
MK23 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | - | 500mA (AC/DC) | 200 V | 200 V | 10W | 0.7 ms | 0.05 ms | Surface Mount | Gull Wing | 0.772" (19.60mm) | 0.087" Dia x 0.551" L (2.20mm x 14.00mm) | 0.098" (2.50mm) | -40°C ~ 130°C | 0.3 pF | 1A (AC/DC) |
|
MK15-C-2SWITCH REED SPST-NO 500MA 180V |
6,514 | 0.69 |
|
Datasheet |
MK15 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 15 ~ 20AT | - | 500mA (AC/DC) | 180 V | 180 V | 10W | 0.5 ms | 0.05 ms | Surface Mount | Gull Wing | 0.768" (19.50mm) | 0.630" L x 0.098" W x 0.098" H (16.00mm x 2.50mm x 2.50mm) | 0.102" (2.60mm) | -40°C ~ 130°C | 0.3 pF | 1A (AC/DC) |
|
MK23-35-C-2SWITCH REED SPST-NO 1A 200V |
6,140 | 0.73 |
|
Datasheet |
MK23 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | - | 1A (AC/DC) | 200 V | 200 V | 15W | 0.5 ms | 0.1 ms | Surface Mount | Gull Wing | 0.620" (15.75mm) | 0.087" Dia x 0.413" L (2.20mm x 10.50mm) | 0.077" (1.95mm) | -40°C ~ 130°C | 0.3 pF | 1.25A (AC/DC) |
