Magnetic, Reed Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Operate Range | Release Range | Current - Switching | Voltage - Switching AC | Voltage - Switching DC | Power - Rated | Operate Time | Release Time | Mounting Type | Termination Style | Length - Overall | Size - Body | Height Above Board | Operating Temperature | Capacitance | Current - Carry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MATE-12B-12-18REED SWITCH |
1,000 | 0.00 |
|
Datasheet |
MATE-12B | Bulk | Active | Glass Body Reed | SPST-NO | 12 ~ 18AT | - | 500mA (DC) | - | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.071" Dia x 0.500" L (1.80mm x 12.70mm) | - | -40°C ~ 125°C | 0.7 pF | 1A (DC) |
|
|
MATE-12B-8-13REED SWITCH |
1,000 | 0.00 |
|
Datasheet |
MATE-12B | Bulk | Active | Glass Body Reed | SPST-NO | 8 ~ 13AT | - | 500mA (DC) | - | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.071" Dia x 0.500" L (1.80mm x 12.70mm) | - | -40°C ~ 125°C | 0.7 pF | 1A (DC) |
|
|
MATE-12B-17-23REED SWITCH |
1,000 | 0.00 |
|
Datasheet |
MATE-12B | Bulk | Active | Glass Body Reed | SPST-NO | 17 ~ 23AT | - | 500mA (DC) | - | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.071" Dia x 0.500" L (1.80mm x 12.70mm) | - | -40°C ~ 125°C | 0.7 pF | 1A (DC) |
|
|
MATE-12B-10-15REED SWITCH |
997 | 0.00 |
|
Datasheet |
MATE-12B | Bulk | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 500mA (DC) | - | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.071" Dia x 0.500" L (1.80mm x 12.70mm) | - | -40°C ~ 125°C | 0.7 pF | 1A (DC) |
|
|
MATE-12B-15-20REED SWITCH |
997 | 0.00 |
|
Datasheet |
MATE-12B | Bulk | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | - | 500mA (DC) | - | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.071" Dia x 0.500" L (1.80mm x 12.70mm) | - | -40°C ~ 125°C | 0.7 pF | 1A (DC) |
|
|
MATE-12B-20-25REED SWITCH |
977 | 0.00 |
|
Datasheet |
MATE-12B | Bulk | Active | Glass Body Reed | SPST-NO | 20 ~ 25AT | - | 500mA (DC) | - | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.071" Dia x 0.500" L (1.80mm x 12.70mm) | - | -40°C ~ 125°C | 0.7 pF | 1A (DC) |
|
|
KSK-1A80-2030SWITCH REED SPST-NO 500MA 170V |
921 | 1.02 |
|
Datasheet |
KSK | Bulk | Active | Glass Body Reed | SPST-NO | 20 ~ 30AT | - | 500mA (AC/DC) | 170 V | 170 V | 10W | 0.6 ms | 0.1 ms | Through Hole | Axial | 1.409" (35.80mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | - | -40°C ~ 130°C | 0.2 pF | 500mA (AC/DC) |
|
SW PR126/30-35 ATSWITCH REED SPST-NO 1.5A 300V |
2,997 | 1.02 |
|
- |
PR126 | Bulk | Active | Glass Body Reed | SPST-NO | 30 ~ 35AT | 16 ~ 23AT | 1.5A (AC/DC) | 300 V | 300 V | 70VA | 0.8 ms | 0.1 ms | Through Hole | Axial | 2.126" (54.00mm) | 0.098" Dia x 0.799" L (2.50mm x 20.30mm) | - | -40°C ~ 130°C | 0.3 pF | 2.5A (AC/DC) |
|
|
CT10-1025-G2SWITCH REED SPST-NO 500MA 140V |
1,994 | 0.00 |
|
Datasheet |
CT10 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 10 ~ 25AT | - | 500mA (AC/DC) | 140 V | 200 V | 10W | - | - | Surface Mount | Gull Wing | 0.770" (19.56mm) | 0.458" L x 0.095" W x 0.115" H (11.63mm x 2.41mm x 2.92mm) | 0.115" (2.92mm) | -40°C ~ 125°C | - | 500mA (DC) |
|
|
MITI-7L-20-25SWITCH REED SPST-NO 180MA 120V |
935 | 0.00 |
|
Datasheet |
MITI-7 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 20 ~ 25AT | - | 180mA (AC), 250mA (DC) | 120 V | 170 V | 10W | 450 µs | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | - | -40°C ~ 125°C | 0.3 pF | 500mA (DC) |
|
|
MITI-7L-15-20SWITCH REED SPST-NO 180MA 120V |
850 | 0.00 |
|
Datasheet |
MITI-7 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | - | 180mA (AC), 250mA (DC) | 120 V | 170 V | 10W | 450 µs | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | - | -40°C ~ 125°C | 0.3 pF | 500mA (DC) |
|
|
MITI-7L-10-15SWITCH REED SPST-NO 180MA 120V |
836 | 0.00 |
|
Datasheet |
MITI-7 | Bulk | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 180mA (AC), 250mA (DC) | 120 V | 170 V | 10W | 450 µs | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | - | -40°C ~ 125°C | 0.3 pF | 500mA (DC) |
|

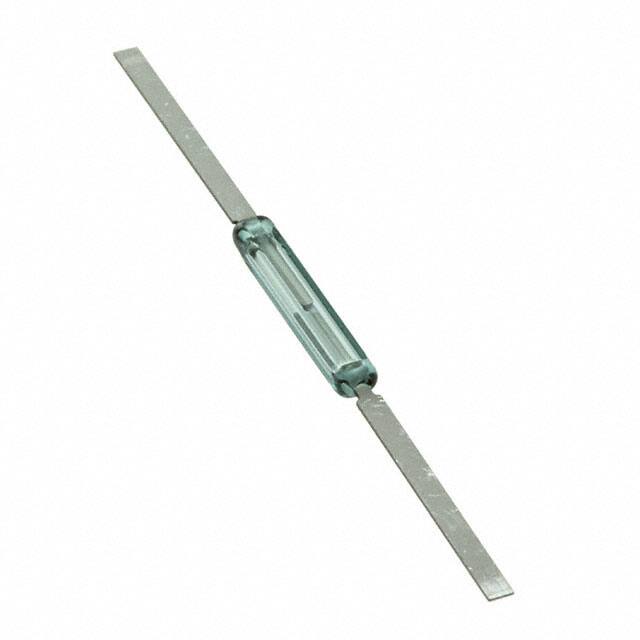

KSK-1A35/1-3035SWITCH REED SPST-NO 700MA 1000V |
2,143 | 0.91 |
|
Datasheet |
KSK | Bulk | Active | Glass Body Reed | SPST-NO | 30 ~ 35AT | - | 700mA (AC/DC) | 1000 V | 1000 V | 20W | 0.5 ms | 0.2 ms | Surface Mount | Axial, Flat | 1.358" (34.50mm) | 0.413" L x 0.087" W x 0.077" H (10.50mm x 2.20mm x 1.95mm) | - | -40°C ~ 130°C | 0.3 pF | 1.25A (AC/DC) |
|
59165-1-T-00-ASWITCH REED SPST-NO 350MA 140V |
1,167 | 1.70 |
|
Datasheet |
59165 | Box | Active | Molded Body Reed | SPST-NO | 15 ~ 20AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 1 ms | 1 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm) | - | -40°C ~ 105°C | 0.3 pF | 800mA (DC) |
|
|
MISM-7LB-15-20SWITCH REED SPST-NO 180MA 120V |
3,000 | 0.00 |
|
Datasheet |
MISM-7 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | - | 180mA (AC), 250mA (DC) | 120 V | 170 V | 10W | 450 µs | 0.2 ms | Surface Mount | Gull Wing | 0.540" (13.72mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | 0.090" (2.28mm) | -40°C ~ 125°C | 0.3 pF | 500mA (DC) |
|
|
MISM-7LB-6-10SWITCH REED SPST-NO 180MA 120V |
2,999 | 0.00 |
|
Datasheet |
MISM-7 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 6 ~ 10AT | - | 180mA (AC), 250mA (DC) | 120 V | 170 V | 10W | 450 µs | 0.2 ms | Surface Mount | Gull Wing | 0.540" (13.72mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | 0.090" (2.28mm) | -40°C ~ 125°C | 0.3 pF | 500mA (DC) |
|
|
MISM-7LB-20-25SWITCH REED SPST-NO 180MA 120V |
2,989 | 0.00 |
|
Datasheet |
MISM-7 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 20 ~ 25AT | - | 180mA (AC), 250mA (DC) | 120 V | 170 V | 10W | 450 µs | 0.2 ms | Surface Mount | Gull Wing | 0.540" (13.72mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | 0.090" (2.28mm) | -40°C ~ 125°C | 0.3 pF | 500mA (DC) |
|
|
MISM-7LB-10-15SWITCH REED SPST-NO 180MA 120V |
2,683 | 0.00 |
|
Datasheet |
MISM-7 | Bulk | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 180mA (AC), 250mA (DC) | 120 V | 170 V | 10W | 450 µs | 0.2 ms | Surface Mount | Gull Wing | 0.540" (13.72mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | 0.090" (2.28mm) | -40°C ~ 125°C | 0.3 pF | 500mA (DC) |
|

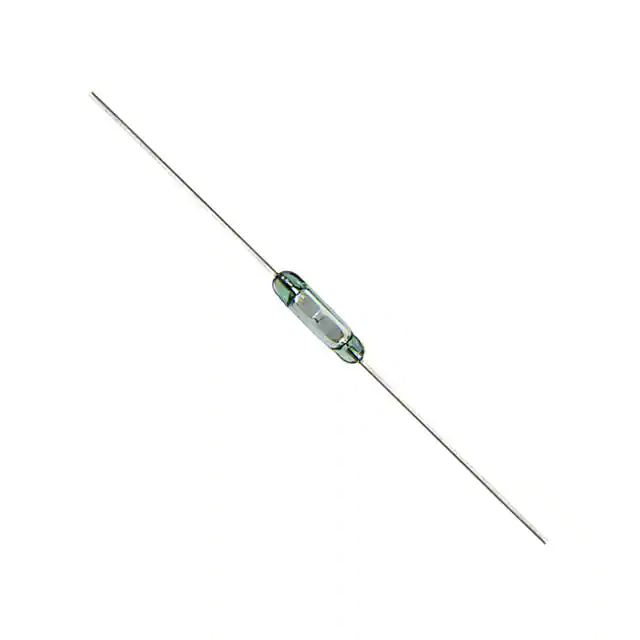

KSK-1A80-1520SWITCH REED SPST-NO 500MA 170V |
688 | 1.02 |
|
Datasheet |
KSK | Bulk | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | - | 500mA (AC/DC) | 170 V | 170 V | 10W | 0.6 ms | 0.1 ms | Through Hole | Axial | 1.409" (35.80mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | - | -40°C ~ 130°C | 0.2 pF | 500mA (AC/DC) |
|
|
MISM-7LR-20-25SWITCH REED SPST-NO 180MA 120V |
3,000 | 0.00 |
|
Datasheet |
MISM-7 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 20 ~ 25AT | - | 180mA (AC), 250mA (DC) | 120 V | 170 V | 10W | 450 µs | 0.2 ms | Surface Mount | Gull Wing | 0.540" (13.72mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | 0.090" (2.28mm) | -40°C ~ 125°C | 0.3 pF | 500mA (DC) |
