Magnetic, Reed Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Operate Range | Release Range | Current - Switching | Voltage - Switching AC | Voltage - Switching DC | Power - Rated | Operate Time | Release Time | Mounting Type | Termination Style | Length - Overall | Size - Body | Height Above Board | Operating Temperature | Capacitance | Current - Carry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MISM-7LR-15-20SWITCH REED SPST-NO 180MA 120V |
3,000 | 0.00 |
|
Datasheet |
MISM-7 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | - | 180mA (AC), 250mA (DC) | 120 V | 170 V | 10W | 450 µs | 0.2 ms | Surface Mount | Gull Wing | 0.540" (13.72mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | 0.090" (2.28mm) | -40°C ~ 125°C | 0.3 pF | 500mA (DC) |
|
|
MISM-7LR-10-15SWITCH REED SPST-NO 180MA 120V |
2,979 | 0.00 |
|
Datasheet |
MISM-7 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 180mA (AC), 250mA (DC) | 120 V | 170 V | 10W | 450 µs | 0.2 ms | Surface Mount | Gull Wing | 0.540" (13.72mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | 0.090" (2.28mm) | -40°C ~ 125°C | 0.3 pF | 500mA (DC) |
|
|
MISM-7LR-6-10SWITCH REED SPST-NO 180MA 120V |
2,973 | 0.00 |
|
Datasheet |
MISM-7 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 6 ~ 10AT | - | 180mA (AC), 250mA (DC) | 120 V | 170 V | 10W | 450 µs | 0.2 ms | Surface Mount | Gull Wing | 0.540" (13.72mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | 0.090" (2.28mm) | -40°C ~ 125°C | 0.3 pF | 500mA (DC) |
|

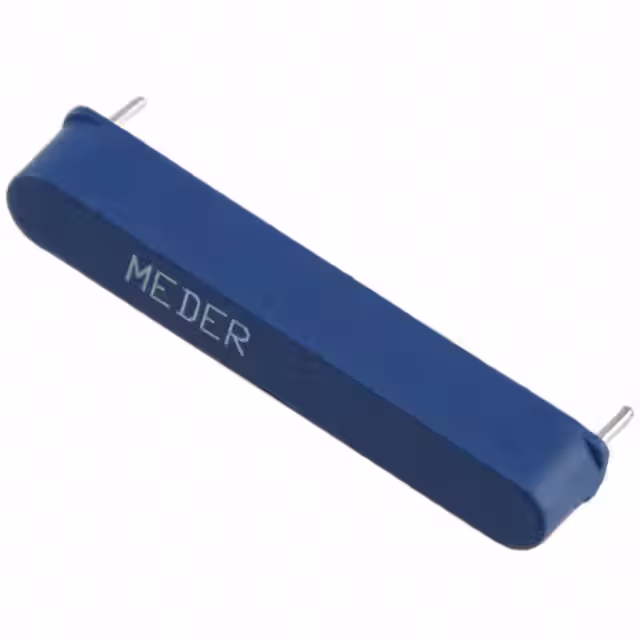

MK06-8-CSWITCH REED SPST-NO 500MA 200V |
472 | 1.15 |
|
Datasheet |
MK06 | Bulk | Active | Molded Body Reed | SPST-NO | 15 ~ 20AT | - | 500mA (AC/DC) | 200 V | 200 V | 10W | 0.7 ms | 0.05 ms | Through Hole | PC Pin | 0.879" (22.33mm) | 0.879" L x 0.130" W x 0.165" H (22.33mm x 3.30mm x 4.20mm) | 0.165" (4.20mm) | -20°C ~ 85°C | 0.3 pF | 1A (AC/DC) |
|

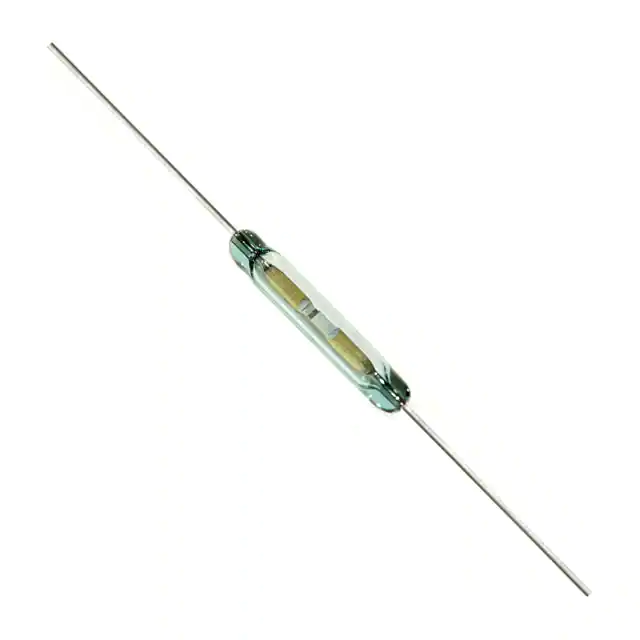

ORD 2211/20-30 ATSWITCH REED SPST-NO 500MA 100V |
743 | 1.18 |
|
Datasheet |
ORD | Bulk | Active | Glass Body Reed | SPST-NO | 20 ~ 30AT | - | 500mA (AC/DC) | 100 V | 100 V | 50W | 0.6 ms | 0.05 ms | Through Hole | Axial | 1.736" (44.10mm) | 0.110" Dia x 0.650" L (2.80mm x 16.50mm) | - | - | 0.3 pF | 2.5A (AC/DC) |
|
59170-1-T-00-ASWITCH REED SPST-NO 350MA 140V |
2,617 | 2.09 |
|
Datasheet |
59170 | Box | Active | Molded Body Reed | SPST-NO | 15 ~ 20AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 1 ms | 0.5 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.450" L x 0.090" W x 0.090" H (11.43mm x 2.29mm x 2.29mm) | - | -40°C ~ 125°C | 0.3 pF | 800mA (DC) |
|
|
MK17-D-3REED SENSOR |
1,580 | 0.00 |
|
Datasheet |
MK17 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 20 ~ 25AT | - | 500mA (AC/DC) | 170 V | 170 V | 10W | 0.6 ms | 50 µs | Surface Mount | J Lead | 0.382" (9.70mm) | 0.335" L x 0.083" W x 0.083" H (8.50mm x 2.10mm x 2.10mm) | 0.083" (2.10mm) | -40°C ~ 130°C | 0.4 pF | 500mA (AC/DC) |
|
MK06-4-ESWITCH REED SPST-NO 500MA 200V |
1,000 | 0.00 |
|
Datasheet |
MK06 | Bulk | Active | Molded Body Reed | SPST-NO | 25 ~ 30AT | - | 500mA (AC/DC) | 200 V | 200 V | 10W | 0.7 ms | 0.05 ms | Through Hole | PC Pin | 0.475" (12.06mm) | 0.475" L x 0.130" W x 0.130" H (12.06mm x 3.30mm x 3.30mm) | 0.130" (3.30mm) | -20°C ~ 85°C | 0.3 pF | 1A (AC/DC) |
|
MRPR-20-22-33SWITCH REED SPST-NO 1.1A 265V |
747 | 1.96 |
|
Datasheet |
MRPR-20 | Bulk | Active | Glass Body Reed | SPST-NO | 22 ~ 33AT | - | 1.1A (AC), 1.5A (DC) | 265 V | 250 V | 50W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.112" Dia x 0.800" L (2.84mm x 20.32mm) | - | -20°C ~ 125°C | 0.2 pF | 3A (DC) |
|

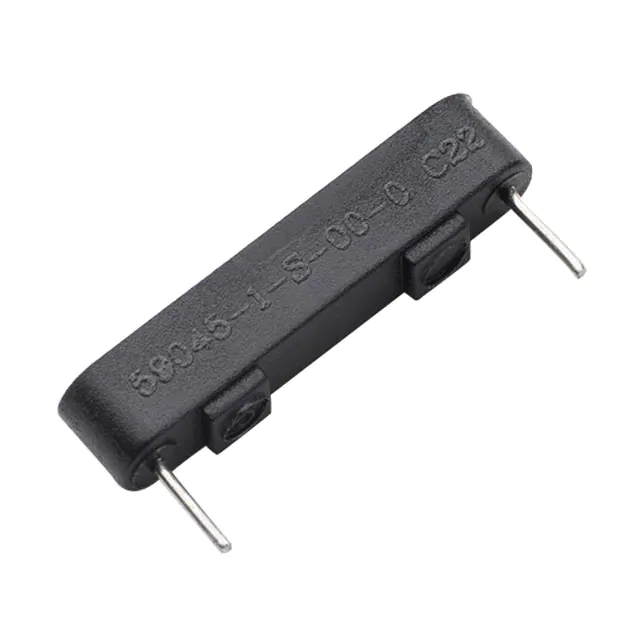

59045-1-S-00-0SWITCH REED SPST-NO 350MA 140V |
387 | 2.86 |
|
Datasheet |
59045 | Box | Active | Molded Body Reed | SPST-NO | 15 ~ 20AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 1 ms | 1 ms | Through Hole | PC Pin | 0.700" (17.78mm) | 0.700" L x 0.130" W x 0.170" H (17.78mm x 3.30mm x 4.32mm) | 0.170" (4.33mm) | -40°C ~ 105°C | 0.3 pF | 1.2A (DC) |
|
|
MK17-C-3SWITCH REED SPST-NO 500MA 170V |
2,000 | 0.00 |
|
Datasheet |
MK17 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 10 ~ 15AT | - | 500mA (AC/DC) | 170 V | 170 V | 10W | 0.6 ms | 50 µs | - | J Lead | 0.382" (9.70mm) | - | 0.083" (2.10mm) | -40°C ~ 130°C | 0.4 pF | 500mA (AC/DC) |
|
|
KSK-1C90U-1520SWITCH REED SPDT 500MA 175V |
690 | 2.35 |
|
Datasheet |
KSK | Bulk | Active | Glass Body Reed | SPDT | 15 ~ 20AT | - | 500mA (AC/DC) | 175 V | 175 V | 10W | 0.7 ms | 1.5 ms | Through Hole | Axial | 2.209" (56.10mm) | 0.100" Dia x 0.551" L (2.54mm x 14.00mm) | - | -40°C ~ 130°C | 1 pF | 1A (AC/DC) |
|
MK23-90-D-2SWITCH REED SPDT 500MA 175V |
2,490 | 2.31 |
|
Datasheet |
MK23 | Tape & Reel (TR) | Active | Glass Body Reed | SPDT | 20 ~ 25AT | - | 500mA (AC/DC) | 175 V | 175 V | 10W | 0.7 ms | 1.5 ms | Surface Mount | Gull Wing | 1.000" (25.40mm) | 0.100" Dia x 0.551" L (2.54mm x 14.00mm) | 0.110" (2.80mm) | -40°C ~ 130°C | 1.5 pF | 1A (AC/DC) |
|

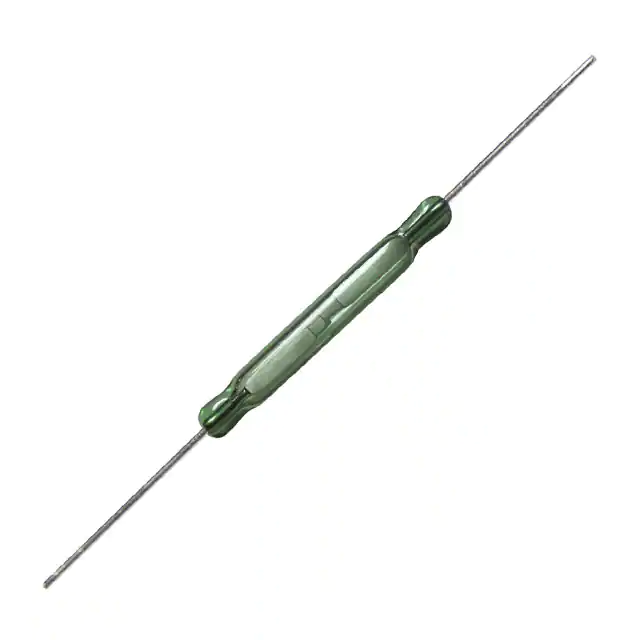

RI-23GP1520SWITCH REED SPST-NO 500MA 140V |
3,536 | 0.76 |
|
Datasheet |
RI-23GP | Bulk | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | - | 500mA (AC/DC) | 140 V | 200 V | 10W | 0.25 ms | 0.03 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.100" Dia x 0.570" L (2.54mm x 14.50mm) | - | -55°C ~ 125°C | 0.3 pF | 1.5A (DC) |
|
|
RI-23GP2025SWITCH REED SPST-NO 500MA 140V |
1,446 | 0.47 |
|
Datasheet |
RI-23GP | Bulk | Active | Glass Body Reed | SPST-NO | 20 ~ 25AT | - | 500mA (AC/DC) | 140 V | 200 V | 10W | 0.25 ms | 0.03 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.100" Dia x 0.570" L (2.54mm x 14.50mm) | - | -55°C ~ 125°C | 0.25 pF | 2.5A (DC) |
|
RI-23GP-5055SWITCH REED SPST-NO 500MA 140V |
1,429 | 0.76 |
|
Datasheet |
RI-23GP | Bulk | Active | Glass Body Reed | SPST-NO | 50 ~ 55AT | 24 ~ 52AT | 500mA (AC/DC) | 140 V | 200 V | 10W | 0.25 ms | 0.03 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.100" Dia x 0.570" L (2.54mm x 14.50mm) | - | -55°C ~ 125°C | 0.25 pF | 2.75A (DC) |
|
PMC-1001TS1520SWITCH REED SPST-NO 700MA 130V |
572 | 1.25 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | 4AT | 700mA (AC/DC) | 130 V | 180 V | 10W | 0.5 ms | 0.3 ms | Surface Mount | Axial | 0.512" (13.00mm) | 0.394" L x 0.079" W x 0.091" H (10.00mm x 2.00mm x 2.30mm) | - | -40°C ~ 125°C | - | 1A (AC/DC) |
|
59166-1-U-00-DSWITCH REED SPST-NO 350MA 140V |
1,500 | 1.11 |
|
Datasheet |
59166 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 20 ~ 25AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Surface Mount | Gull Wing | 0.805" (20.45mm) | 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm) | 0.099" (2.52mm) | -40°C ~ 125°C | 0.3 pF | 800mA (DC) |
|
|
59166-1-S-00-CSWITCH REED SPST-NO 350MA 140V |
1,018 | 1.20 |
|
Datasheet |
59166 | Bulk | Active | Molded Body Reed | SPST-NO | 10 ~ 15AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Surface Mount | Gull Wing | 0.805" (20.45mm) | 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm) | 0.099" (2.52mm) | -40°C ~ 125°C | 0.3 pF | 800mA (DC) |
|
RI-48GP-5055SWITCH REED SPST-NO 1A 250V |
486 | 1.10 |
|
Datasheet |
RI-48GP | Bulk | Active | Glass Body Reed | SPST-NO | 50 ~ 55AT | 43 ~ 51AT | 1A (AC/DC) | 250 V | 200 V | 70W | 0.35 ms | 0.03 ms | Surface Mount | Axial | 2.157" (54.79mm) | 0.106" Dia x 0.807" L (2.70mm x 20.50mm) | - | -55°C ~ 125°C | 0.2 pF | 2.25A (DC) |
