Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

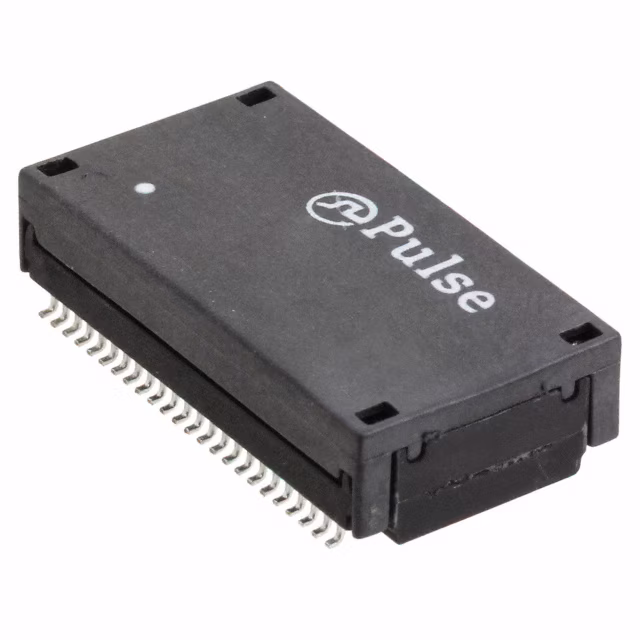

H5014FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
316 | 16.65 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.590" W (27.81mm x 14.99mm) | 0.285" (7.24mm) | 0°C ~ 70°C | - | - |
|

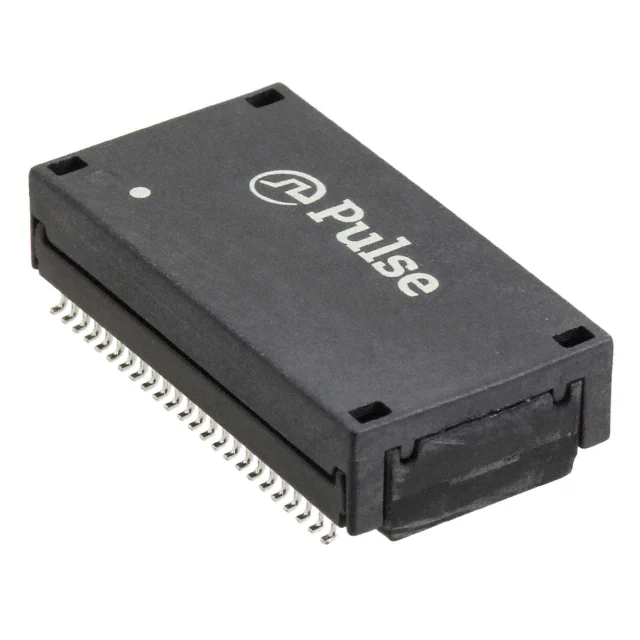

H5014FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
269 | 16.75 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.590" W (27.81mm x 14.99mm) | 0.285" (7.24mm) | 0°C ~ 70°C | - | - |
|

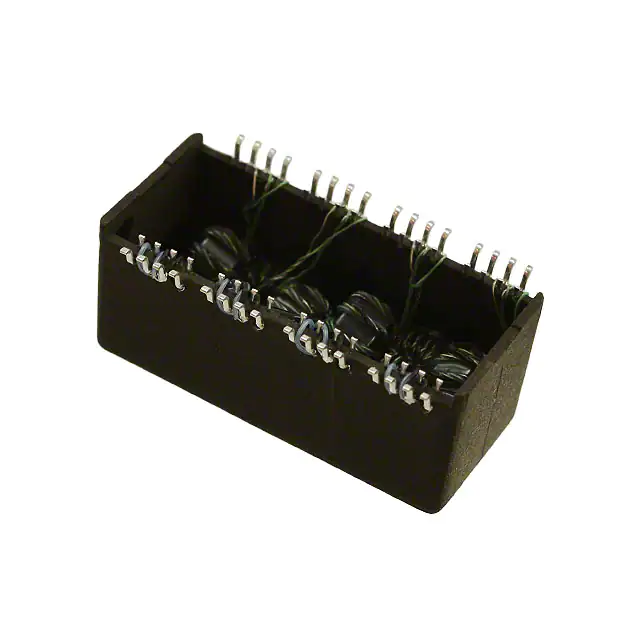

749024012TRANSFORMER WE-LAN 10/100/1000BT |
484 | 21.84 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 1.125" L x 0.500" W (28.57mm x 12.70mm) | 0.500" (12.70mm) | -40°C ~ 85°C | - | - |
|
H5401NLMODULE XFORMR QUAD GIGABIT SMD |
220 | 22.29 |
|
Datasheet |
- | Tray | Active | - | - | - | 1CT:1CT | Surface Mount | 1.120" L x 0.680" W (28.45mm x 17.27mm) | 0.438" (11.12mm) | 0°C ~ 70°C | - | - |
|

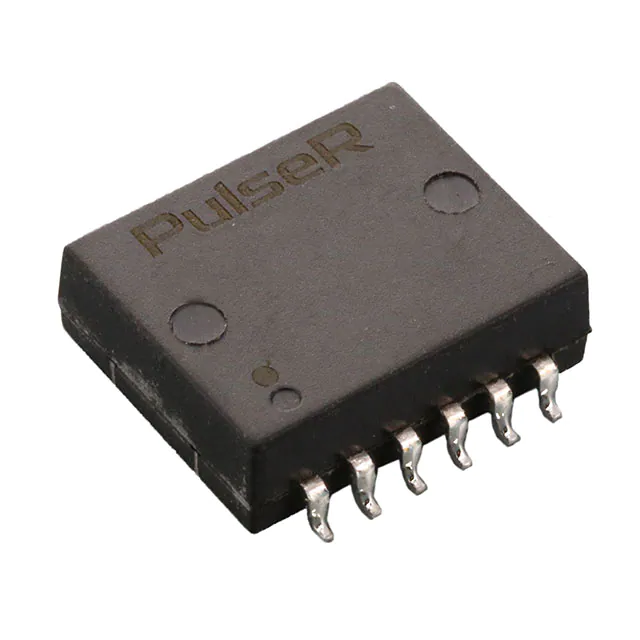

100B-1001XNLEXTMP XFMR 100BT SMG COM RPB |
123 | 18.39 |
|
Datasheet |
- | Bulk | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.583" L x 0.470" W (14.81mm x 11.94mm) | 0.202" (5.13mm) | - | - | - |
|
10GB-6014NLTLAN MODULE XFRMR 10GBASE-T SMD |
194 | 21.96 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T | - | - | - | Surface Mount | 0.605" L x 0.547" W (15.37mm x 13.89mm) | 0.255" (6.47mm) | -40°C ~ 125°C | - | - |
|

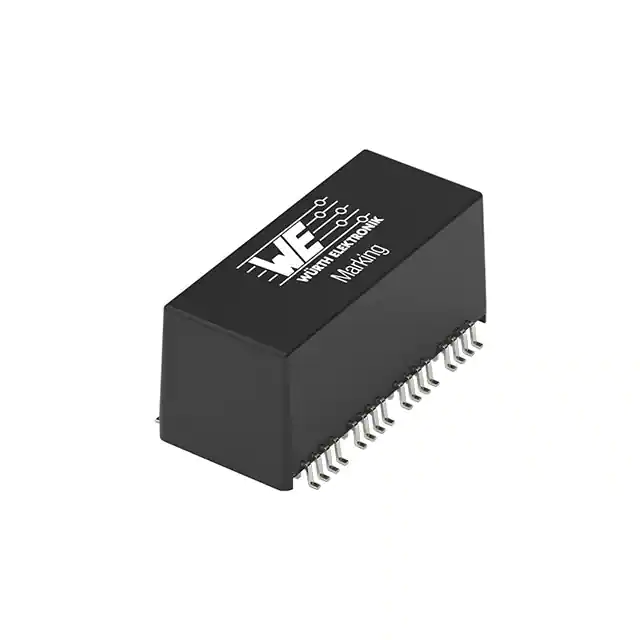

7490240120XFRMR WE-LAN 10/100/1000 BASE-T |
348 | 28.07 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|

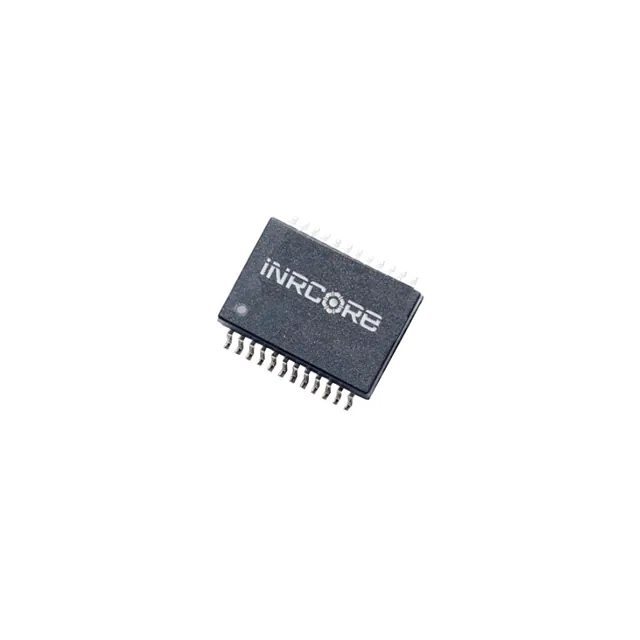

10GB-6010TLAN MODULE XFRMR 10GBASE-T SMD |
404 | 22.37 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T | - | - | - | Surface Mount | 0.605" L x 0.547" W (15.37mm x 13.89mm) | 0.255" (6.47mm) | -40°C ~ 125°C | - | - |
|

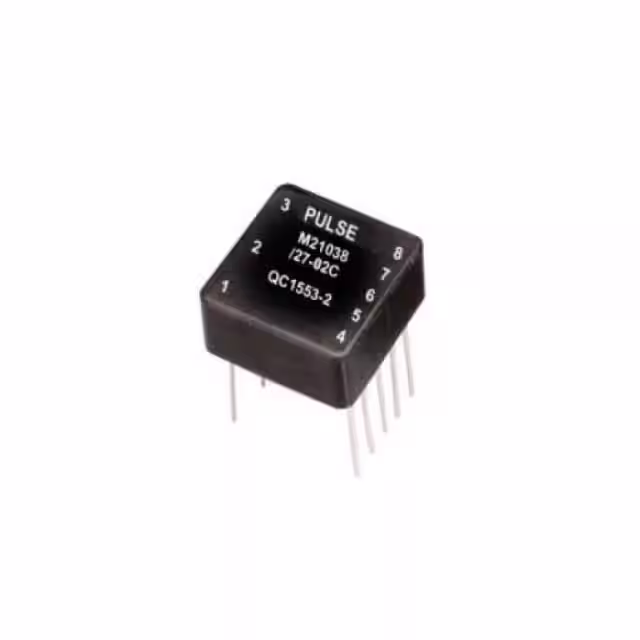

Q1553-2TRANSFORMER PULSE LVL:M PKG:A |
2,364 | 34.31 |
|
Datasheet |
- | Bulk | Active | Interface, MIL-STD-1553 | - | - | 1.4CT:1CT, 2CT:1CT | Through Hole | 0.624" L x 0.624" W (15.86mm x 15.86mm) | 0.250" (6.35mm) | -55°C ~ 130°C | - | - |
|
ALT4532-171-T001XFRMR LAN 1CT:1CT 170UH |
3,484 | 1.52 |
|
Datasheet |
ALT | Tape & Reel (TR) | Not For New Designs | LAN | 170µH | - | 1CT:1CT | Surface Mount | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.087" (2.20mm) | -40°C ~ 85°C | - | - |
|
78615/1JCPULSE XFMR 1CT:1CT 1.7MH |
195 | 1.57 |
|
Datasheet |
786J | Tube | Active | General Purpose | 1.7mH | 20VµS | 1CT:1CT | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
78604/4CTRANSFORMER 2:1 100UH 4VUS |
181 | 1.57 |
|
Datasheet |
786 | Tube | Active | General Purpose | 67µH | 4VµS | 2:1 | Through Hole | 0.354" L x 0.375" W (9.00mm x 9.52mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78613/8CPULSE XFMR 1CT:1 1MH |
162 | 1.57 |
|
Datasheet |
786 | Tube | Active | General Purpose | 1mH | 15VµS | 1CT:1 | Through Hole | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
PA1323NLPULSE XFMR 1:1 600UH |
1,340 | 0.00 |
|
Datasheet |
- | Tray | Active | - | 600µH | 21.7VµS | 1:1 | Surface Mount | 0.280" L x 0.375" W (7.11mm x 9.52mm) | 0.210" (5.33mm) | -40°C ~ 130°C | - | - |
|
PA0264NLPULSE XFMR 1:1:1 1.14MH |
1,510 | 0.00 |
|
Datasheet |
- | Tube | Active | - | 1.14mH | 17.2VµS | 1:1:1 | Surface Mount | 0.340" L x 0.265" W (8.64mm x 6.73mm) | 0.140" (3.56mm) | -40°C ~ 130°C | - | - |
|
ALANS100X1-2F10ETLAN SGL 100B XFMR&CMC 16PIN |
586 | 2.12 |
|
Datasheet |
ALANS100X1-2 | Tape & Reel (TR) | Active | - | 350µH | - | 1CT:1CT | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.222" (5.65mm) | 0°C ~ 70°C | - | - |
|

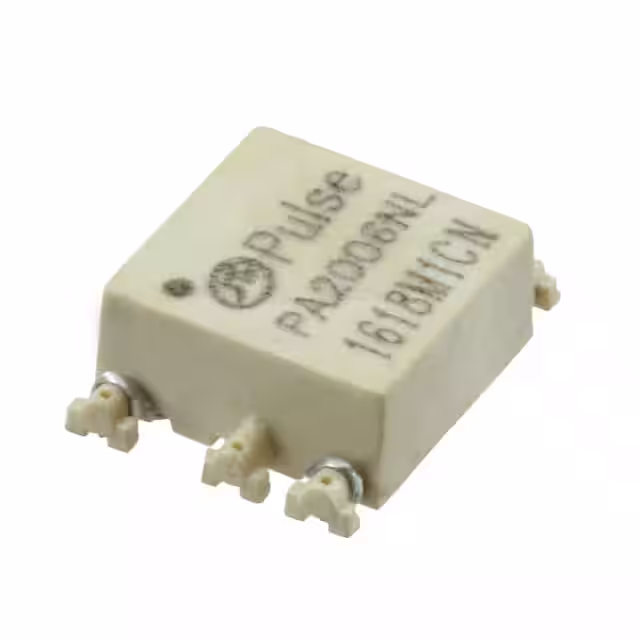

PA2006NLPULSE XFMR 1:1 864UH |
1,670 | 0.00 |
|
Datasheet |
- | Tube | Active | - | 864µH | 26VµS | 1:1 | Surface Mount | 0.340" L x 0.460" W (8.64mm x 11.68mm) | 0.160" (4.06mm) | -40°C ~ 130°C | - | - |
.00xNL-Series.jpg)
|
PA3855.001NLPULSE XFMR 54UH |
770 | 0.00 |
|
Datasheet |
- | Tray | Active | - | 54µH | - | - | Surface Mount | 0.571" L x 0.695" W (14.50mm x 17.65mm) | 0.551" (14.00mm) | -40°C ~ 130°C | - | - |
_R1022NL(T)_iNRCORE_Product-Image.jpg)
|
R1022NLXFRMR ETHERNET MOD IND 10/100B-T |
233 | 4.04 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | - | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.235" (5.97mm) | -40°C ~ 85°C | - | - |
|
|
PA3855.004NLPULSE XFMR 21UH |
770 | 0.00 |
|
Datasheet |
- | Tray | Active | - | 21µH | - | - | Surface Mount | 0.571" L x 0.695" W (14.50mm x 17.65mm) | 0.551" (14.00mm) | -40°C ~ 130°C | - | - |
