Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NL565050T-562J-PFFIXED IND 5.6MH 33MA 85 OHM SMD |
3,854 | 0.00 |
|
Datasheet |
NL | 2220 (5650 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 5.6 mH | ±5% | 33 mA | - | Unshielded | 85Ohm Max | 30 @ 252kHz | 800kHz | - | -40°C ~ 105°C | 252 kHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
NL565050T-472J-PFFIXED IND 4.7MH 36MA 78 OHM SMD |
4,318 | 0.00 |
|
Datasheet |
NL | 2220 (5650 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 mH | ±5% | 36 mA | - | Unshielded | 78Ohm Max | 30 @ 252kHz | 900kHz | - | -40°C ~ 105°C | 252 kHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|

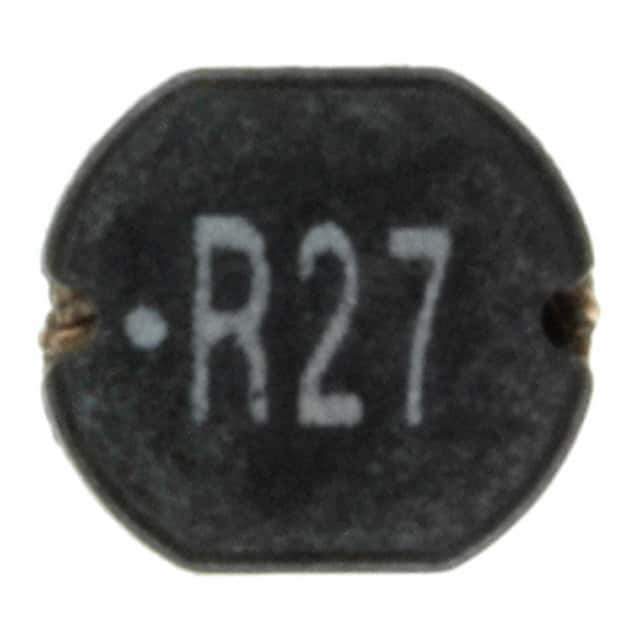

74477450027FIXED IND 270NH 8.2A 5 MOHM SMD |
1,029 | 1.19 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 nH | ±20% | 8.2 A | 9.5A | Unshielded | 5mOhm Max | - | 180MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.091" (2.30mm) |
|
7447745056FIXED IND 5.6UH 2.3A 78 MOHM SMD |
3,191 | 1.19 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 2.3 A | 2.1A | Unshielded | 78mOhm Max | - | 32MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.091" (2.30mm) |
|
7447745062FIXED IND 6.2UH 2.1A 90 MOHM SMD |
3,869 | 1.19 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.2 µH | ±20% | 2.1 A | 2A | Unshielded | 90mOhm Max | - | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.091" (2.30mm) |
|
VLS3015T-100MR70FIXED IND 10UH 700MA 276MOHM SMD |
4,773 | 0.00 |
|
Datasheet |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±20% | 700 mA | 700mA | Shielded | 276mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
VLS3015T-1R0N2R0FIXED IND 1UH 2A 58 MOHM SMD |
3,260 | 0.00 |
|
Datasheet |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1 µH | ±30% | 2 A | 2A | Shielded | 58mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
VLS3015T-220MR45FIXED IND 22UH 450MA 622MOHM SMD |
4,980 | 0.00 |
|
Datasheet |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±20% | 450 mA | 450mA | Shielded | 622mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
VLS3015T-2R2M1R4FIXED IND 2.2UH 1.4A 84 MOHM SMD |
2,119 | 0.00 |
|
Datasheet |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±20% | 1.4 A | 1.4A | Shielded | 84mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
VLS3015T-330MR36FIXED IND 33UH 360MA 959MOHM SMD |
2,655 | 0.00 |
|
Datasheet |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 33 µH | ±20% | 360 mA | 360mA | Shielded | 959mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
VLS3015T-4R7MR99FIXED IND 4.7UH 990MA 136MOHM SM |
1,921 | 0.00 |
|
Datasheet |
VLS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±20% | 990 mA | 990mA | Shielded | 136mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|

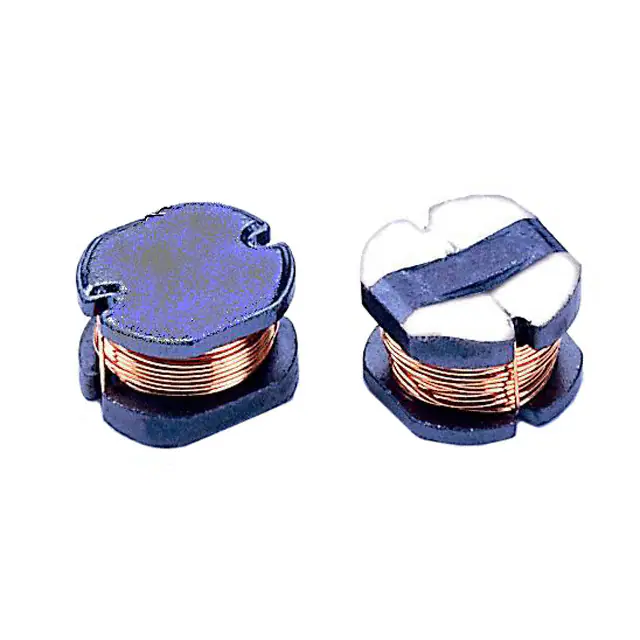

SC75-100FIXED IND 10UH 3.2A 70 MOHM SMD |
4,639 | 0.33 |
|
Datasheet |
SC75 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 3.2 A | 2.3A | Unshielded | 70mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.209" (5.30mm) |
|
|
SC75-330FIXED IND 33UH 1.7A 150 MOHM SMD |
4,431 | 0.33 |
|
Datasheet |
SC75 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 1.7 A | 1.2A | Unshielded | 150mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.209" (5.30mm) |
|
|
SC75-101FIXED IND 100UH 900MA 430MOHM SM |
3,242 | 0.33 |
|
Datasheet |
SC75 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 900 mA | 720mA | Unshielded | 430mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.209" (5.30mm) |
.jpg)
|
74479774215FIXED IND 1.5UH 800MA 260MOHM SM |
1,915 | 0.86 |
|
Datasheet |
WE-PMI | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 1.5 µH | ±20% | 800 mA | 300mA | Shielded | 260mOhm | 15 @ 1MHz | 70MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.024" (0.60mm) |
.jpg)
|
B82422H1472J000FIXED IND 4.7UH 700MA 250MOHM SM |
2,852 | 0.73 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±5% | 700 mA | - | Unshielded | 250mOhm Max | 10 @ 2.52MHz | 46MHz | AEC-Q200 | -55°C ~ 150°C | 7.96 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
-4,1x3,8x1,20mm.jpg)
|
CIGW404012GM1R0MLEFIXED IND 1UH 4.8A 25 MOHM SMD |
3,515 | 0.00 |
|
- |
CIGW | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1 µH | ±20% | 4.8 A | 6A | Shielded | 25mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.161" L x 0.150" W (4.10mm x 3.80mm) | 0.047" (1.20mm) |
|
CIGW404012GM2R2MLEFIXED IND 2.2UH SMD |
4,020 | 0.00 |
|
- |
CIGW | - | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.2 µH | ±20% | - | - | Shielded | - | - | - | - | - | 1 MHz | - | Surface Mount | 1515 (4040 Metric) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
CIGW404012GM4R7MLEFIXED IND 4.7UH SMD |
4,556 | 0.00 |
|
- |
CIGW | - | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | - | - | Shielded | - | - | - | - | - | 1 MHz | - | Surface Mount | 1515 (4040 Metric) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
CIGW404012GMR47MLEFIXED IND 470NH 6A 17 MOHM SMD |
1,722 | 0.00 |
|
Datasheet |
CIGW | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 470 nH | ±20% | 6 A | 9.4A | Shielded | 17mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.161" L x 0.150" W (4.10mm x 3.80mm) | 0.047" (1.20mm) |
