Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

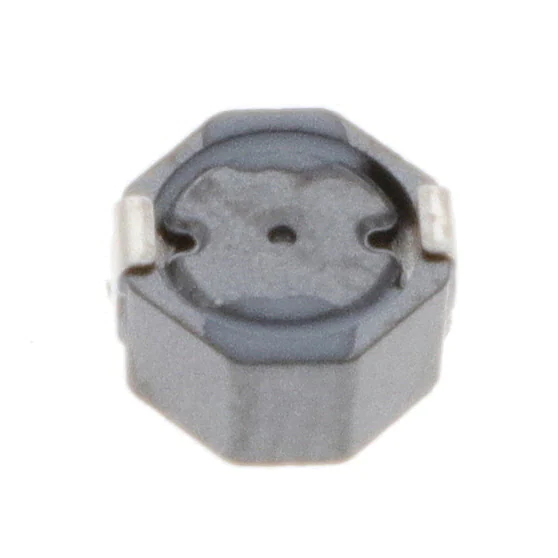

#A915AY-6R8M=P3FIXED IND 6.8UH 1.65A 0.068OHM |
1,939 | 0.80 |
|
Datasheet |
D53LC | 2020 (5050 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.65 A | 1.51A | Shielded | 68mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.118" (3.00mm) |
|
#A915AY-4R7M=P3FIXED IND 4.7UH 2.01A 0.045OHM |
3,532 | 0.80 |
|
Datasheet |
D53LC | 2020 (5050 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 2.01 A | 1.87A | Shielded | 45mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.118" (3.00mm) |
|
THMA0503SP-220MN-DIND 22UH 133.2MOHM 3.3A |
2,842 | 0.00 |
|
Datasheet |
THMA0503SP | Nonstandard | Active | Molded | Metal | 22 µH | ±20% | 3.3 A | 1.9A | Unshielded | 133.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.220" L x 0.205" W (5.60mm x 5.20mm) | 0.118" (3.00mm) | |
|
AIAP-03-6R8KFIXED IND 6.8UH 11.6A 13 MOHM TH |
2,616 | 0.00 |
|
Datasheet |
AIAP-03 | Axial | Bulk | Obsolete | Wirewound | - | 6.8 µH | ±10% | 11.6 A | - | Unshielded | 13mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.449" Dia x 0.902" L (11.40mm x 22.90mm) | - |
|
|
AIAP-03-3R9MFIXED IND 6.8UH 11.6A 13 MOHM TH |
3,554 | 0.83 |
|
Datasheet |
AIAP-03 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±20% | 15.5 A | - | Unshielded | 7mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.449" Dia x 0.902" L (11.40mm x 22.90mm) | - |
|
|
PM428S-100-RCFIXED IND 10UH 1.19A 110MOHM SMD |
4,923 | 0.70 |
|
Datasheet |
PM428S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 1.19 A | 1A | Shielded | 110mOhm Max | 11.26 @ 2.52MHz | 34MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
PM428S-101-RCFIXED IND 100UH 510MA 600MOHM SM |
4,952 | 0.70 |
|
Datasheet |
PM428S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±30% | 510 mA | 300mA | Shielded | 600mOhm Max | 8.78 @ 796kHz | 9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
PM428S-151-RCFIXED IND 150UH 420MA 860MOHM SM |
4,992 | 0.70 |
|
Datasheet |
PM428S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±30% | 420 mA | 260mA | Shielded | 860mOhm Max | 11.72 @ 796kHz | 6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
PM428S-2R2-RCFIXED IND 2.2UH 2.5A 28 MOHM SMD |
1,103 | 0.70 |
|
Datasheet |
PM428S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 2.5 A | 2.05A | Shielded | 28mOhm Max | 9.24 @ 7.96MHz | 111MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
PM428S-330-RCFIXED IND 33UH 820MA 230MOHM SMD |
1,541 | 0.70 |
|
Datasheet |
PM428S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±30% | 820 mA | 580mA | Shielded | 230mOhm Max | 9.7 @ 2.52MHz | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
PM428S-390-RCFIXED IND 39UH 800MA 250MOHM SMD |
3,395 | 0.70 |
|
Datasheet |
PM428S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±30% | 800 mA | 500mA | Shielded | 250mOhm Max | 9.74 @ 2.52MHz | 14MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
PM428S-4R7-RCFIXED IND 4.7UH 1.55A 70MOHM SMD |
3,352 | 0.70 |
|
Datasheet |
PM428S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 1.55 A | 1.3A | Shielded | 70mOhm Max | 8.12 @ 7.96MHz | 55MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
PM628S-220-RCFIXED IND 22UH 1.4A 115 MOHM SMD |
1,576 | 0.70 |
|
Datasheet |
PM628S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 1.4 A | 1A | Shielded | 115mOhm Max | 8.5 @ 2.52MHz | 19MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.118" (3.00mm) |
|
|
PM628S-470-RCFIXED IND 47UH 920MA 235MOHM SMD |
4,826 | 0.70 |
|
Datasheet |
PM628S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 920 mA | 720mA | Shielded | 235mOhm Max | 10 @ 2.52MHz | 11MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.118" (3.00mm) |
|
|
ELT-3KN163CFIXED IND 1.1MH 30MA 32OHM SMD |
2,402 | 0.00 |
|
Datasheet |
ELT3KN | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.1 mH | ±10% | 30 mA | - | Unshielded | 32Ohm | - | - | - | -20°C ~ 105°C | - | - | Surface Mount | - | 0.130" L x 0.122" W (3.30mm x 3.10mm) | 0.055" (1.40mm) |
|
|
ELT-3KN162CFIXED IND 4MH 15MA 117OHM SMD |
4,534 | 0.00 |
|
Datasheet |
ELT3KN | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4 mH | ±10% | 15 mA | - | Unshielded | 117Ohm | - | - | - | -20°C ~ 105°C | - | - | Surface Mount | - | 0.130" L x 0.122" W (3.30mm x 3.10mm) | 0.055" (1.40mm) |
|
|
ELT-3KN128CFIXED IND 560UH 45MA 15OHM SMD |
2,461 | 0.00 |
|
Datasheet |
ELT3KN | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 45 mA | - | Unshielded | 15Ohm | - | - | - | -20°C ~ 105°C | - | - | Surface Mount | - | 0.130" L x 0.130" W (3.30mm x 3.30mm) | 0.087" (2.20mm) |
|
|
ELT-3KN136CFIXED IND 2MH 20MA 55OHM SMD |
1,707 | 0.00 |
|
Datasheet |
ELT3KN | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2 mH | ±10% | 20 mA | - | Unshielded | 55Ohm | - | - | - | -20°C ~ 105°C | - | - | Surface Mount | - | 0.130" L x 0.122" W (3.30mm x 3.10mm) | 0.055" (1.40mm) |
|
|
ELT-3KN135CFIXED IND 1.1MH 30MA 32OHM SMD |
4,151 | 0.00 |
|
Datasheet |
ELT3KN | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.1 mH | ±10% | 30 mA | - | Unshielded | 32Ohm | - | - | - | -20°C ~ 105°C | - | - | Surface Mount | - | 0.130" L x 0.122" W (3.30mm x 3.10mm) | 0.055" (1.40mm) |
|
|
B82464G4273M000FIXED IND 27UH SMD |
2,635 | 1.00 |
|
- |
B82464G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | - | - | Shielded | - | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.118" (3.00mm) |
