Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP6540-390MFIXED IND 39UH 1.8A 322 MOHM SMD |
2,783 | 1.75 |
|
Datasheet |
SRP6540 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 39 µH | ±20% | 1.8 A | 1.8A | Shielded | 322mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.157" (4.00mm) |
|
SRP1270-2R2MFIXED IND 2.2UH 22A 4.2 MOHM SMD |
1,443 | 1.75 |
|
Datasheet |
SRP1270 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 2.2 µH | ±20% | 22 A | 40A | Shielded | 4.2mOhm Max | - | 25MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.539" W (13.70mm x 13.70mm) | 0.276" (7.00mm) |
|
ETQ-P5M2R5YSKFIXED IND 2.45UH 14.1A 8.14MOHM |
1,437 | 2.03 |
|
Datasheet |
PCC-M0854MS | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.45 µH | ±20% | 14.1 A | 21.7A | Shielded | 8.14mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.335" L x 0.315" W (8.50mm x 8.00mm) | 0.213" (5.40mm) |
|
SRP1265A-R82MFIXED IND 820NH 33A 1.9 MOHM SMD |
1,414 | 1.77 |
|
Datasheet |
SRP1265A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 820 nH | ±20% | 33 A | 50A | Shielded | 1.9mOhm Max | 15 @ 100kHz | 50MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.252" (6.40mm) |
|
B82464G4684M000FIXED IND 680UH 420MA 1.3OHM SMD |
1,327 | 2.04 |
|
Datasheet |
B82464G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 420 mA | 460mA | Shielded | 1.3Ohm Max | - | 2MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
SRP1265A-5R6MFIXED IND 5.6UH 12.5A 10MOHM SMD |
1,208 | 1.77 |
|
Datasheet |
SRP1265A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 5.6 µH | ±20% | 12.5 A | 23A | Shielded | 10mOhm Max | 20 @ 100kHz | 15MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.252" (6.40mm) |
|
|
SRP1265A-1R5MFIXED IND 1.5UH 27A 3 MOHM SMD |
656 | 1.77 |
|
Datasheet |
SRP1265A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 1.5 µH | ±20% | 27 A | 45A | Shielded | 3mOhm Max | 20 @ 100kHz | 30MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.252" (6.40mm) |
|
|
SRP1265A-8R2MFIXED IND 8.2UH 10.5A 15.5 MOHM |
147 | 1.77 |
|
Datasheet |
SRP1265A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 8.2 µH | ±20% | 10.5 A | 16A | Shielded | 15.5mOhm Max | 20 @ 100kHz | 11MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.252" (6.40mm) |
|
MPL-AL4020-3R3FIXED IND 3.3UH 4.4A 34.5MOHM SM |
6,315 | 1.74 |
|
Datasheet |
MPL-AL | 2-SMD | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | - | 4.4 A | 5.2A | Unshielded | 34.5mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
BCL322515RT-330M-DFIXED IND 33UH 750MA 1.11OHM SMD |
3,823 | 1.72 |
|
Datasheet |
BCL | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 33 µH | ±20% | 750 mA | 680mA | Shielded | 1.11Ohm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.059" (1.50mm) |
|
19R107CFIXED IND 100MH 70MA 90 OHM TH |
1,717 | 1.57 |
|
Datasheet |
1900R | Radial, Vertical Cylinder | Box | Active | Wirewound | - | 100 mH | ±10% | 70 mA | - | Unshielded | 90Ohm Max | - | - | - | -40°C ~ 95°C | 1 kHz | - | Through Hole | - | 0.472" Dia (12.00mm) | 0.827" (21.00mm) |
|
BCL322520RT-220M-DINDUCTORS FOR POWER CIRCUITS, AU |
1,317 | 1.72 |
|
Datasheet |
BCL | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 22 µH | ±20% | 1.2 A | 1.2A | Shielded | 460mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.079" (2.00mm) |
|
SLF12565T-100M4R8-PFFIXED IND 10UH 4.8A 24.2MOHM SMD |
1,141 | 1.71 |
|
Datasheet |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 4.8 A | 5A | Shielded | 24.2mOhm Max | - | - | - | -20°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
|
SLF12565T-220M3R5-PFFIXED IND 22UH 3.8A 37.9MOHM SMD |
1,119 | 1.71 |
|
Datasheet |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3.8 A | 3.5A | Shielded | 37.9mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
|
SLF12565T-330M2R8-PFFIXED IND 33UH 3.4A 48.7MOHM SMD |
902 | 1.71 |
|
Datasheet |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 3.4 A | 2.8A | Shielded | 48.7mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|

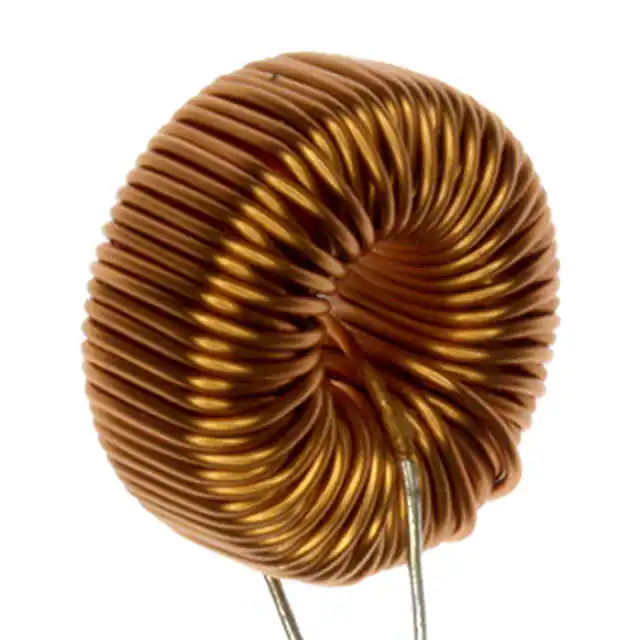

7447020FIXED IND 220UH 1A 160 MOHM TH |
778 | 1.74 |
|
Datasheet |
WE-FI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 220 µH | ±20% | 1 A | - | Unshielded | 160mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.622" Dia x 0.295" W (15.80mm x 7.50mm) | - |
|
LTF5022T-1R2N3R4-DFIXED IND 1.2UH 3.4A 31 MOHM SMD |
669 | 1.71 |
|
Datasheet |
LTF5022T | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 1.2 µH | ±30% | 3.4 A | 3.87A | Shielded | 31mOhm Max | - | - | AEC-Q200 | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.197" W (6.50mm x 5.00mm) | 0.087" (2.20mm) |
|
BCL322520RT-150M-DINDUCTORS FOR POWER CIRCUITS, AU |
591 | 1.72 |
|
Datasheet |
BCL | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 15 µH | ±20% | 1.47 A | 1.33A | Shielded | 320mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.079" (2.00mm) |
|
|
MPL-AL4020-4R7FIXED IND 4.7UH 3.65A 52.2 MOHM |
133 | 1.74 |
|
Datasheet |
MPL-AL | 2-SMD | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | - | 3.65 A | 4.2A | Unshielded | 52.2mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
BCL322520RT-101M-DINDUCTORS FOR POWER CIRCUITS, AU |
6,000 | 1.72 |
|
Datasheet |
BCL | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 100 µH | ±20% | 520 mA | 560mA | Shielded | 2.29Ohm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.079" (2.00mm) |
