Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SH50S-0.9-330FIXED IND 330UH 900MA 740MOHM SM |
1,682 | 6.17 |
|
Datasheet |
SH50 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 330 µH | ±20% | 900 mA | - | Unshielded | 740mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.701" L x 0.669" W (17.80mm x 17.00mm) | 0.451" (11.45mm) |
|
2474R-03LFIXED IND 1.5UH 5.67A 11 MOHM TH |
395 | 6.16 |
|
Datasheet |
2474R | Axial | Bulk | Active | Molded | Ferrite | 1.5 µH | ±15% | 5.67 A | 5.2A | Unshielded | 11mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
.jpg)
|
AIRD-03-102KFIXED IND 1MH 2A 426 MOHM TH |
426 | 6.64 |
|
Datasheet |
AIRD-03 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 2 A | 4.1A | Unshielded | 426mOhm Max | - | - | - | -25°C ~ 85°C | 1 Hz | - | Through Hole | - | 1.102" Dia (28.00mm) | 0.827" (21.00mm) |
|
ATCA-08-471M-VFIXED IND 470UH 7A 64 MOHM TH |
4,133 | 9.01 |
|
Datasheet |
ATCA | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 470 µH | ±20% | 7 A | - | Unshielded | 64mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.673" L x 0.846" W (42.50mm x 21.50mm) | - |
|
S1008R-102KFIXED IND 1UH 670MA 250 MOHM SMD |
625 | 6.27 |
|
Datasheet |
S1008R | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±10% | 670 mA | - | Shielded | 250mOhm Max | 30 @ 7.9MHz | 120MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
S1008R-821KFIXED IND 820NH 715MA 220MOHM SM |
200 | 6.27 |
|
Datasheet |
S1008R | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 820 nH | ±10% | 715 mA | - | Shielded | 220mOhm Max | 40 @ 25MHz | 140MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
2300HT-471-V-RCFIXED IND 470UH 4.5A 140 MOHM TH |
149 | 6.53 |
|
Datasheet |
2300HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 470 µH | ±15% | 4.5 A | - | Shielded | 140mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|

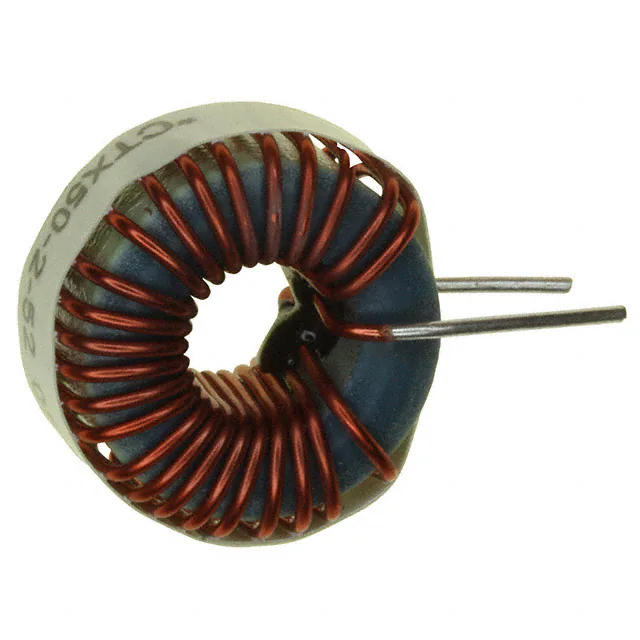

CTX50-2-52-RFIXED IND 50UH 4.9A 32.6 MOHM TH |
115 | 5.58 |
|
Datasheet |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 50 µH | ±20% | 4.9 A | 4.9A | Unshielded | 32.6mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.850" Dia x 0.535" W (21.60mm x 13.60mm) | - |
|
70F101AF-RCFIXED IND 100MH 29MA 278 OHM TH |
335 | 7.04 |
|
Datasheet |
70F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 mH | ±5% | 29 mA | - | Unshielded | 278Ohm Max | 48 @ 79kHz | 157kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.440" Dia x 0.630" L (11.18mm x 16.00mm) | - |
|

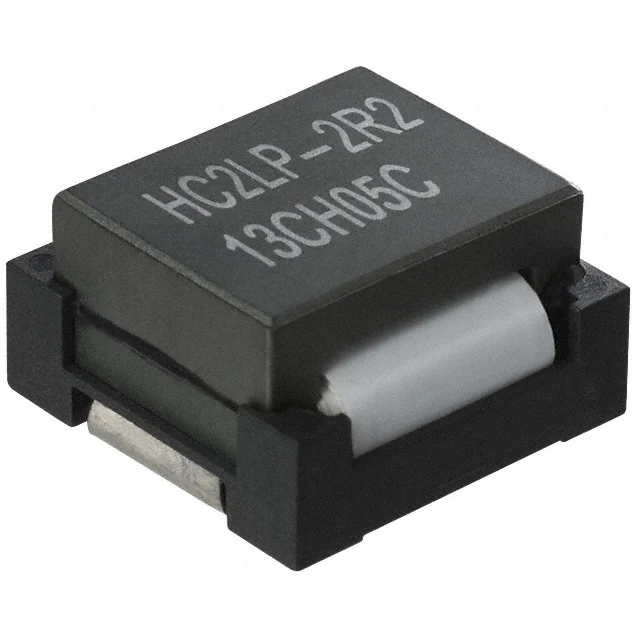

HC2LP-2R2-RFIXED IND 2.2UH 24.3A 2.3MOHM SM |
797 | 6.15 |
|
Datasheet |
HC2LP | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 24.3 A | 31.9A | Unshielded | 2.3mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 0.756" L x 0.756" W (19.20mm x 19.20mm) | 0.440" (11.18mm) |
|
PA4349.103ANLTFIXED IND 10UH 33A 4.15 MOHM SMD |
1,099 | 7.19 |
|
Datasheet |
PA4349.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 30 A | 20A | Shielded | 4.15mOhm Max | - | 7MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
PA4349.473ANLTFIXED IND 47UH 17A 20.8 MOHM SMD |
621 | 7.19 |
|
Datasheet |
PA4349.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 47 µH | ±20% | 14 A | 10A | Shielded | 20.8mOhm Max | - | 3.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
PA4349.104ANLTFIXED IND 100UH 11A 40 MOHM SMD |
608 | 7.19 |
|
Datasheet |
PA4349.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 µH | ±20% | 9.5 A | 7.5A | Shielded | 40mOhm Max | - | 1MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
PA4349.472ANLTFIXED IND 4.7UH 47A 2.2 MOHM SMD |
267 | 7.19 |
|
Datasheet |
PA4349.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 44 A | 34A | Shielded | 2.2mOhm Max | - | 11MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
74439370100FIXED IND 10UH 11.5A 6.5MOHM SMD |
365 | 6.98 |
|
Datasheet |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 10 µH | ±20% | 11.5 A | 35.8A | Shielded | 6.5mOhm | - | 8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.646" L x 0.606" W (16.40mm x 15.40mm) | 0.394" (10.00mm) |
|
|
74439370150FIXED IND 15UH 10A 11.3MOHM SMD |
165 | 6.98 |
|
Datasheet |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 15 µH | ±20% | 10 A | 34A | Shielded | 11.3mOhm | - | 7MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.646" L x 0.606" W (16.40mm x 15.40mm) | 0.394" (10.00mm) |
|
IHDM1107BBEVR47M20FG, IHDM-1107BB-20 .47 20% |
684 | 11.59 |
|
Datasheet |
IHDM-1107BB-20 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Iron Powder | 470 nH | ±20% | 128 A | 422A | Unshielded | 0.3mOhm Max | - | 217MHz | - | -55°C ~ 180°C | 100 kHz | - | Through Hole | - | 1.055" L x 0.705" W (26.80mm x 17.90mm) | 0.882" (22.40mm) |
|
74439370330WE-XHMI SMT POWER INDUCTOR 33 UH |
425 | 0.00 |
|
Datasheet |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 33 µH | ±20% | 8.5 A | 18.15A | Shielded | 18mOhm | - | 5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.646" L x 0.606" W (16.40mm x 15.40mm) | 0.433" (11.00mm) |
|
74435586800FIXED IND 68UH 7.5A 27.3MOHM SMD |
1,579 | 7.34 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 68 µH | ±20% | 7.5 A | 9.5A | Shielded | 27.3mOhm | - | 5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2212 | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
|
|
74435588200FIXED IND 82UH 7A 30.4 MOHM SMD |
692 | 7.34 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 82 µH | ±20% | 7 A | 8.5A | Shielded | 30.4mOhm | - | 4.4MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2212 | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.488" (12.40mm) |
